Repair Procedures: Removal

  1. Turn the ignition switch OFF.

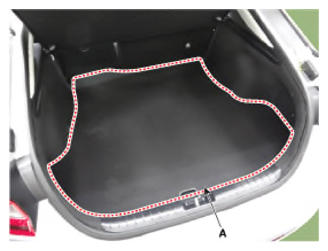

  2. Remove the luggage covering (A).
    G13543422Courtesy of HYUNDAI MOTOR AMERICA

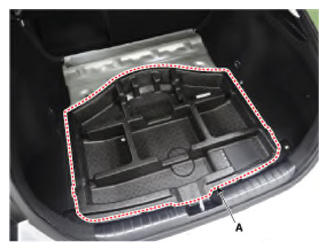

  3. Remove the luggage center tray (A).
    G13543423Courtesy of HYUNDAI MOTOR AMERICA

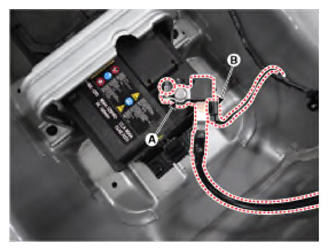

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G13543424Courtesy of HYUNDAI MOTOR AMERICA

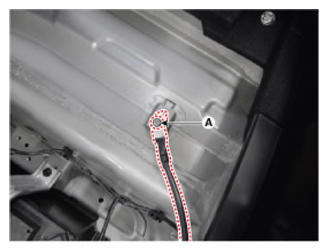

  6. Remove the battery sensor by loosening the mounting bolts (C).
    G13543425Courtesy of HYUNDAI MOTOR AMERICA
