Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.

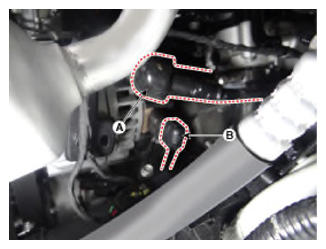

    G13543457Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the alternator lower bolt and upper bolt (A).

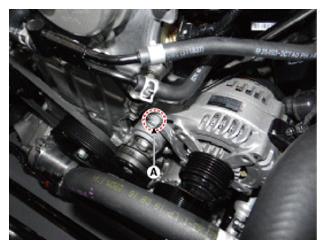

    G13543458Courtesy of HYUNDAI MOTOR AMERICA

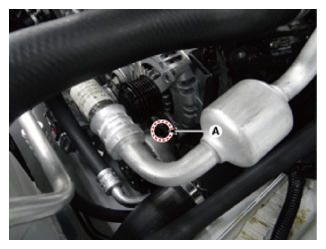

    G13543459Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the alternator (A).

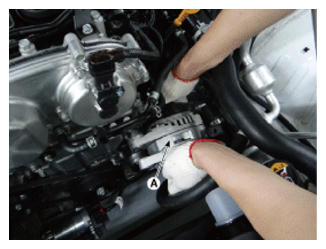

    G13543460Courtesy of HYUNDAI MOTOR AMERICA

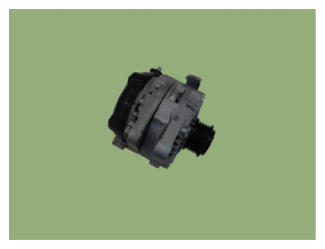

    G13543461Courtesy of HYUNDAI MOTOR AMERICA
