Repair Procedures: Removal

  1. Turn the ignition switch OFF.

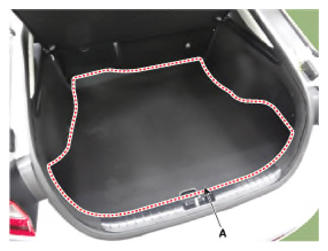

  2. Remove the luggage covering (A).
    G13543431Courtesy of HYUNDAI MOTOR AMERICA

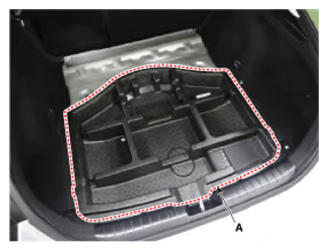

  3. Remove the luggage center tray (A).
    G13543432Courtesy of HYUNDAI MOTOR AMERICA

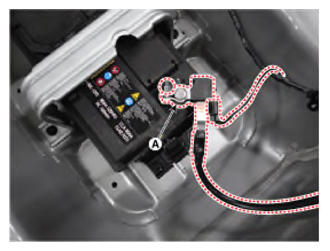

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G13543433Courtesy of HYUNDAI MOTOR AMERICA

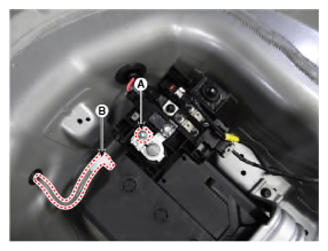

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G13543434Courtesy of HYUNDAI MOTOR AMERICA

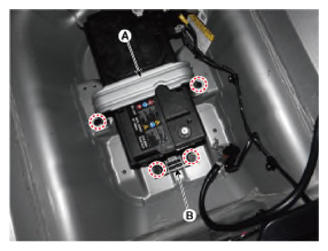

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G13543435Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the battery.
