Repair Procedures: Removal

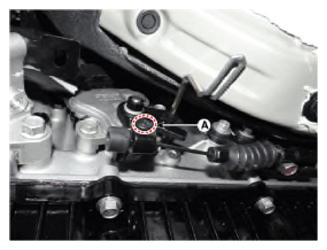

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G13543905Courtesy of HYUNDAI MOTOR AMERICA

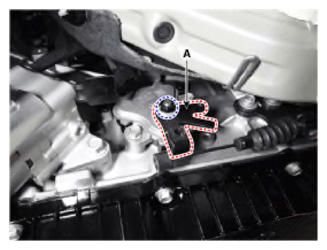

  2. Remove the parking release lever (A) after loosening the nut.
    G13543906Courtesy of HYUNDAI MOTOR AMERICA

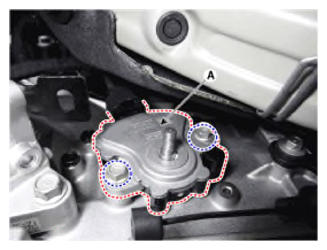

  3. Remove the parking switch (A) after loosening the bolts.
    G13543907Courtesy of HYUNDAI MOTOR AMERICA

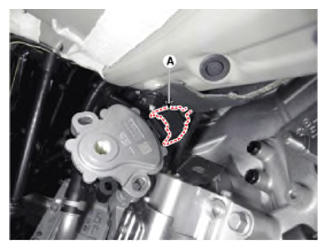

  4. Disconnect the parking switch connector (A).
G13543908Courtesy of HYUNDAI MOTOR AMERICA
