Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

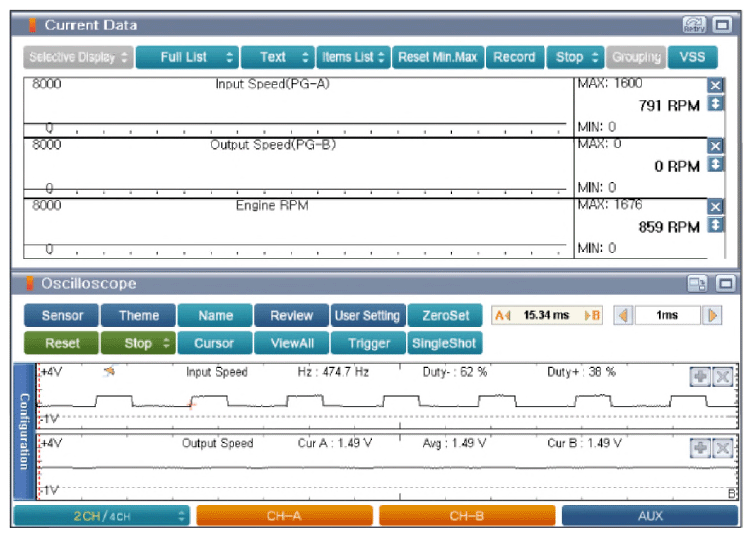

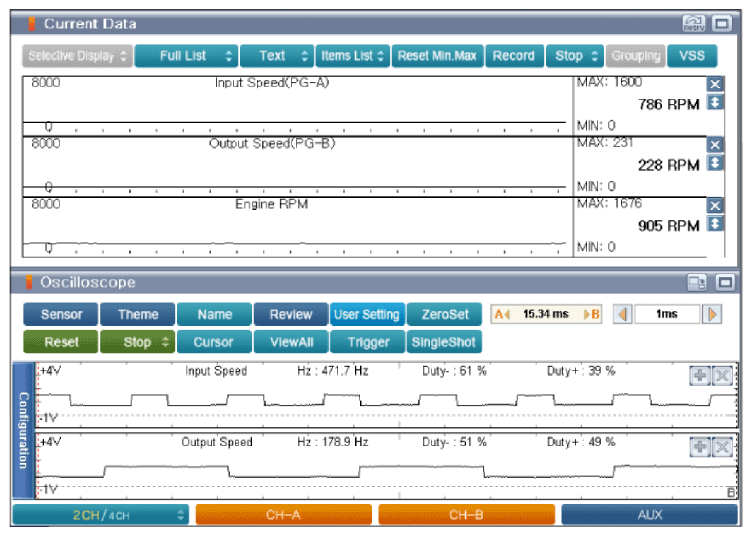

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

Courtesy of HYUNDAI MOTOR AMERICA

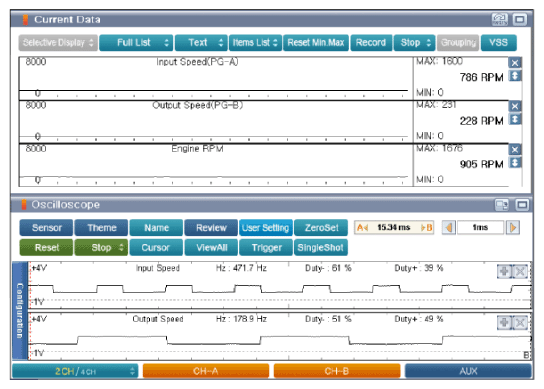

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
