Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

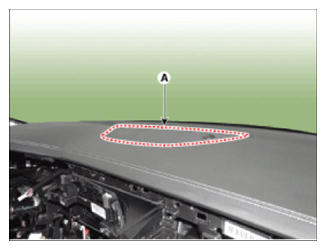

  2. Using a screwdriver or remover, remove the center speaker grill (A).
    G13542395Courtesy of HYUNDAI MOTOR AMERICA

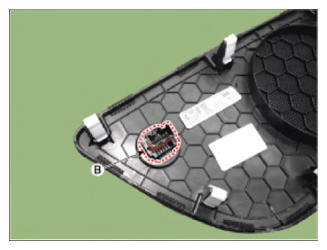

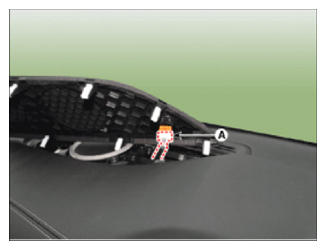

  3. With a flat-head screwdriver, remove the photo sensor (B) from the center of the defrost nozzle after disconnecting the connector (A).
    G13542396Courtesy of HYUNDAI MOTOR AMERICA
    G13542397Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
