Repair Procedures: Replacement

Recover the refrigerant with a recovery/recycling/charging station.
Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")
Remove the smart cruise control system.
(Refer to Engine Electrical System - "SMART CRUISE CONTROL (STOP & GO) (SCC) UNIT-RADAR ")
Remove the head lamps.
(Refer to Body Electrical System - "HEAD LAMPS ")

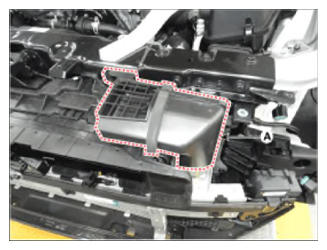

After loosening the mounting bolt, remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

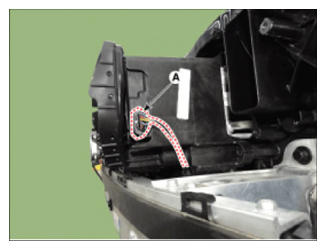

Disconnect the air guard connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and screws, remove the air guard (A).
Tightening torque:

Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 Ib-ft)

Screw: 6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the transmission oil cooler (A) mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

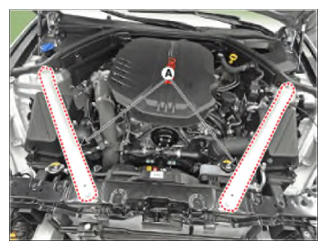

Remove the strut bar (A).

Courtesy of HYUNDAI MOTOR AMERICA

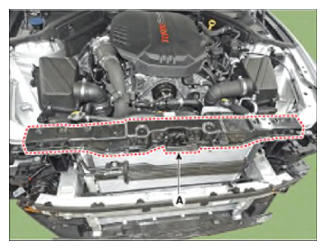

Remove the radiator support panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

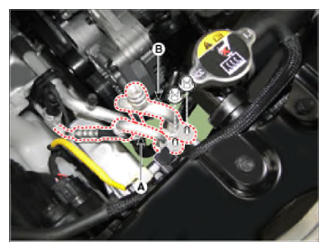

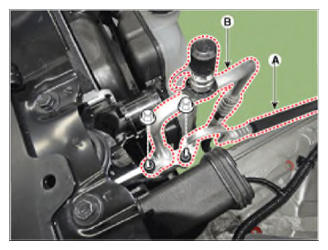

Remove the discharge line (B) and liquid line (A) from the condenser after loosening the nuts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

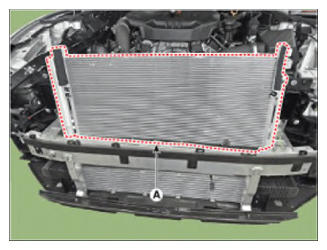

Remove the condenser (A) from radiator.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
NOTE:
- If you're installing a new condenser, add refrigerant oil.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Charge the system, and test its performance.
