Components & Components Location: Components

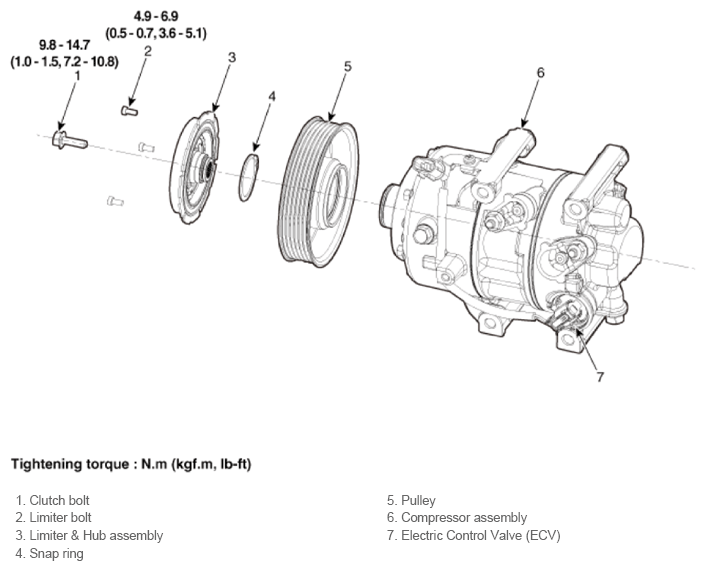

Fig 1: Compressor Components Location With Torque Specification

G13542351

Courtesy of HYUNDAI MOTOR AMERICA
