Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the front seat shield inner cover.
(Refer to Front Seat - "FRONT SEAT INNER COVER ")
- Remove the front seat shield outer cover.
(Refer to Front Seat - "FRONT SEAT OUTER COVER ")

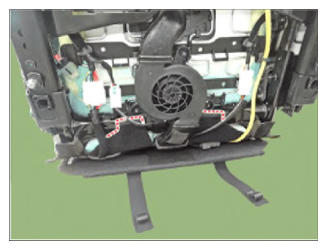

- Remove the front seat lower protector (A).

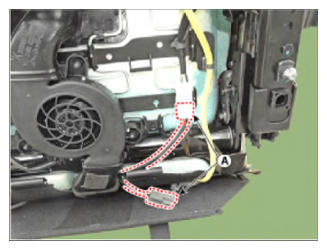

- Disconnect the connectors (A).

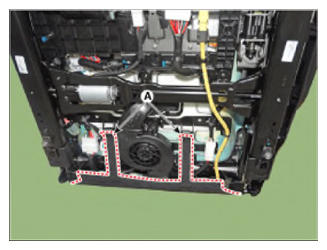

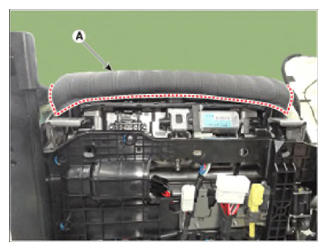

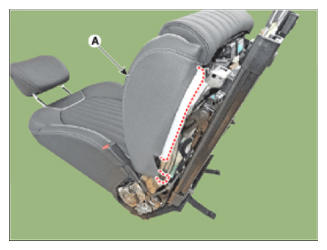

- Remove the protector (A) from the front seat cushion frame.
[Upper]
[Lower]
[LH]
[RH]

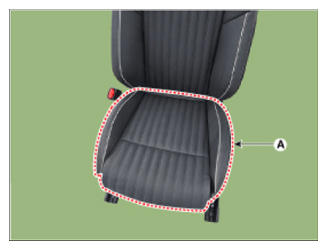

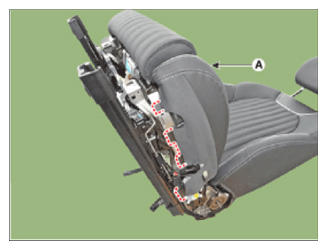

- Remove the front seat cushion cover (A) from the front seat cushion frame.

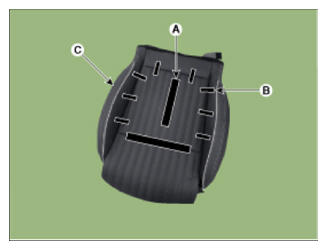

- After removing the velcro tape (A) and hog-ring clips (B) inside the front seat cushion cover, remove the seat cushion cover (C).CAUTION:
- Be careful not to allow the sponge insert wire to separated in its place.

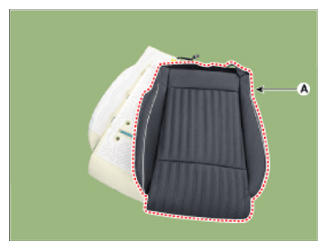

- Remove the front seat cushion cover (A) from the front seat cushion pad.
- To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips (or pin-type retainers).
- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).

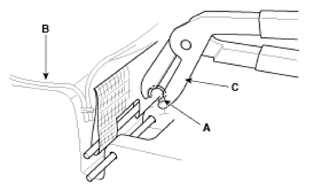

- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
