Front Wireless Power Charging Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

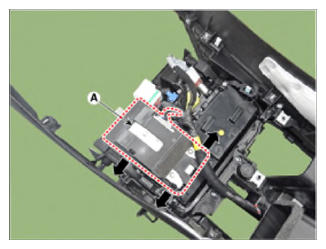

  3. Remove the wireless power charging unit (A) after loosening the screws.
G13541783Courtesy of HYUNDAI MOTOR AMERICA
G13541784Courtesy of HYUNDAI MOTOR AMERICA
