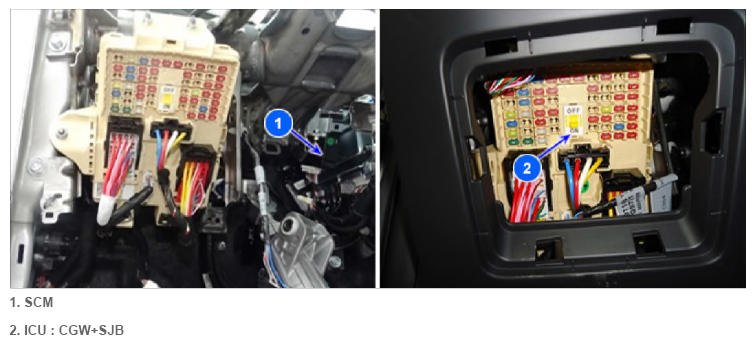

Component Location
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
SCM (Steering Column Module): "STEERING TILT & TELESCOPIC MODULE"
IMS*: Integrated Memory System
ICU (Integrated Central control Unit): "ICU JUNCTION BLOCK"
CGW (Central GateWay): "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
SJB (Smart Junction Block): "ICU JUNCTION BLOCK"
