Repair procedures: Removal: [AWD]

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

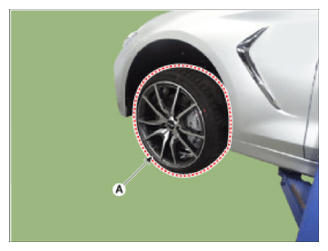

Remove the front wheel and tire (A) from the front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire (A).
Courtesy of HYUNDAI MOTOR AMERICA

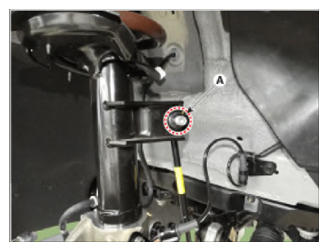

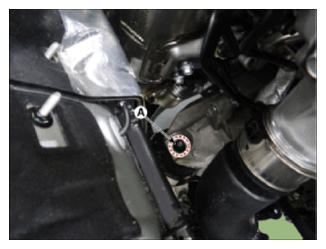

Loosen the nut (A) and then disconnect the stabilizer link from the front strut assembly.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

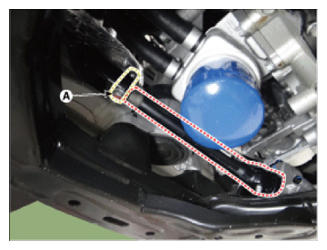

Loosen the bolts (A) and then remove the stabilizer bar.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt (A) and then separate the universal joint from the shaft joint.
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Keep the steering wheel in a neutral position. Moving the steering wheel may damage the cable inside the clock spring.
- Tighten the steering column bolts in the same direction as they were removed.
- Do not reuse the universal joint bolt when installing.

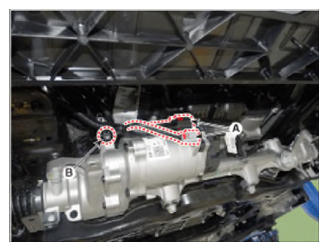

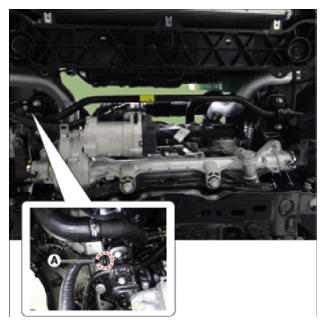

Disconnect the R-MDPS connector (A) and clip (B).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the R-MDPSwiring clip (A) from the sub frame.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

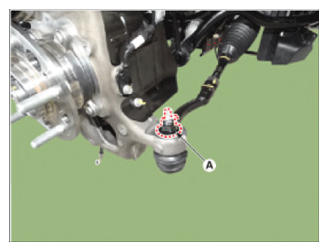

Remove the split pin and tie rod end ball joint nut (A).
Tightening Torques:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

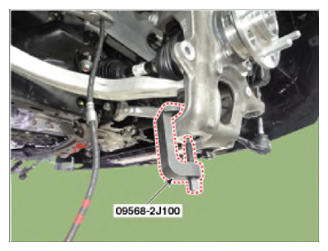

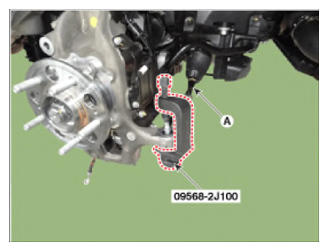

Remove the tie rod end ball joint (A) from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

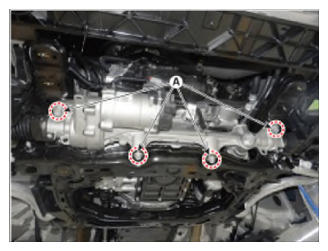

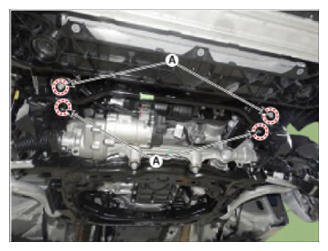

Loosen the gear box bolts (A) and then remove the gear box.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- Be careful not to damage the ECU when removing the steering gear box.
Courtesy of HYUNDAI MOTOR AMERICA

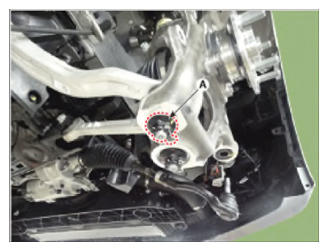

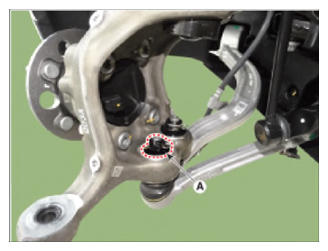

Remove the lateral arm pin and nut (A).
Tightening Torques:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

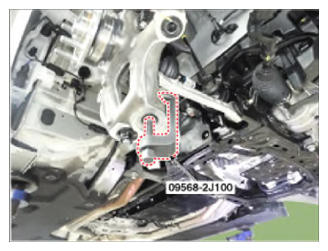

Remove the lateral arm from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the tension arm pin and nut (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the tension arm from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the hood assembly.
(Refer to Body - "HOOD ASSEMBLY ")

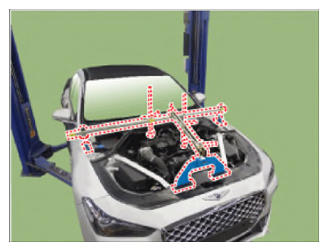

Assemble the engine support fixture on the engine room.
(Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

Courtesy of HYUNDAI MOTOR AMERICA

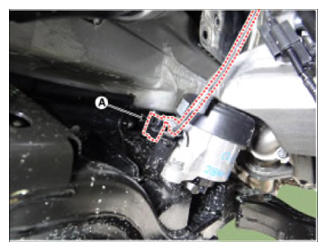

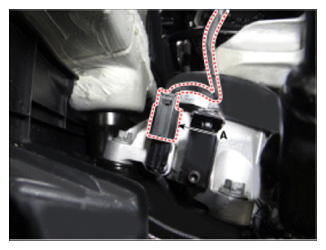

Disconnect the semi active engine mounting connector (A). [R 2.2]
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

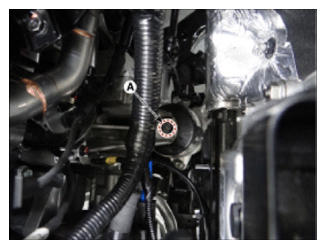

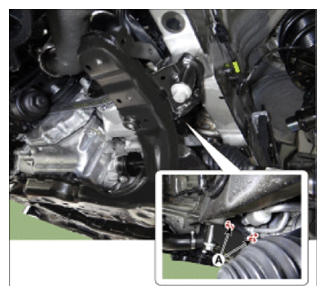

Loosen the engine mounting insulator nut (A).
Tightening torque:

63.7 - 83.3 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

[THETA II 2.0 T-GDI]

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[LAMBDA II 3.3 T-GDI]

Courtesy of HYUNDAI MOTOR AMERICA

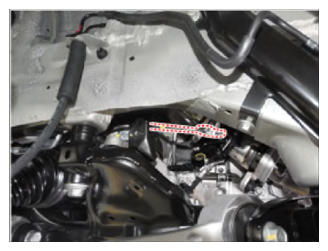

Remove the clip (A) from the sub frame.
[LAMBDA II 3.3 T-GDI]

Courtesy of HYUNDAI MOTOR AMERICA

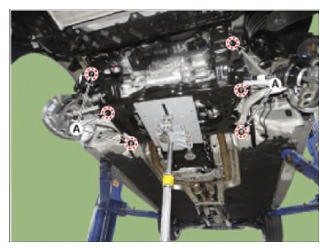

Loosen the bolts (A) and then remove the sub frame.
Tightening torque:

176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

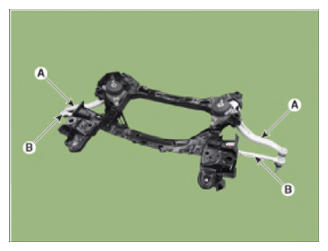

Remove the tension arm (A) and lateral arm (B) after loosen the bolt & nut.
Tightening torque

Tension arm bolt & nut:156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Lateral arm bolt & nut:117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

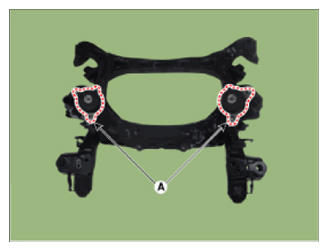

Remove the engine bracket from the sub frame.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
