Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

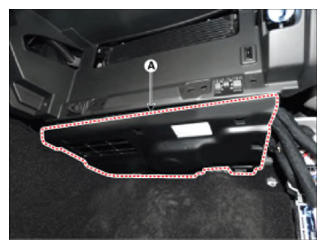

  2. To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down.
    G13542494Courtesy of HYUNDAI MOTOR AMERICA

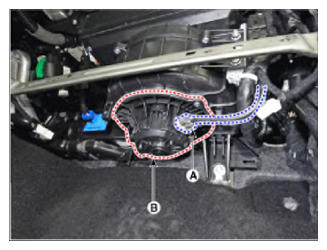

  3. Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
    G13542495Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
