Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.
- Install the TJ boot band and then TJ boot.

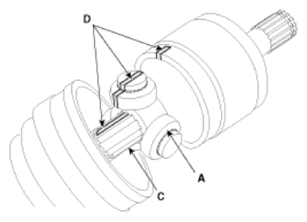

- Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
- Add specified grease to the joint boot as much as it was wiped away at inspection.
- Install the both boot band.
- To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.
Engine Distance (L) mm (in.) LH side RH side Gasoline 2.0 479.9 (18.8937) 463.3 (18.2402) Diesel 2.2 480.6 (18.9212) 464.0 (18.2677) Gasoline 3.3 479.9 (18.8937) 463.4 (18.2441) - Using the SST (09495-3K000), secure the TJ boot bands.
Clearance (A) : 2.0 mm (0.0787 in.) or less
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
