Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

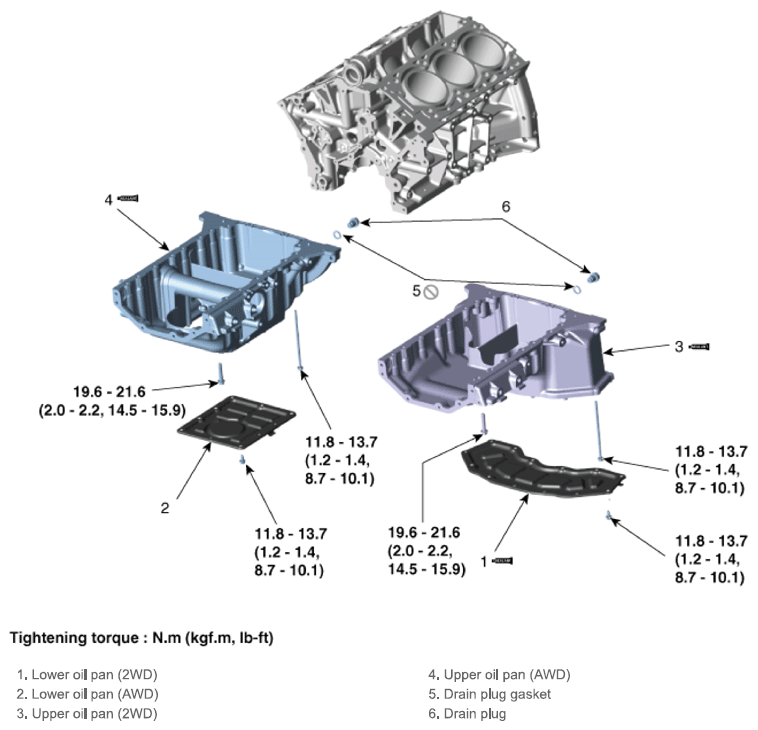

Fig 1: Oil Pan Components Location With Torque Specification
G13542964Courtesy of HYUNDAI MOTOR AMERICA
