Removal and Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal.
- Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

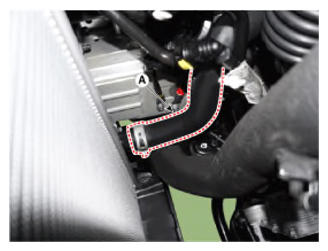

- Disconnect the radiator lower hose (A).

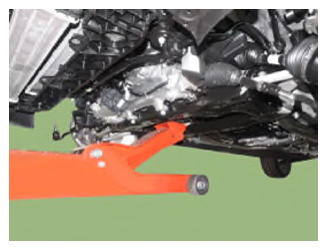

- Set the jack to the edge of upper oil pan.
- Remove the LH & RH engine mounting.
(Refer to Engine and Transmission Assembly - "ENGINE MOUNTING ")

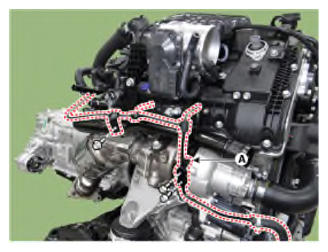

- Remove the RH turbocharger water pipe (A).
Tightening torque
Eye bolts:
33.3 - 39.2 N.m (3.4 - 4.0 kgf.m, 24.6 - 28.9 lb-ft)
Bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

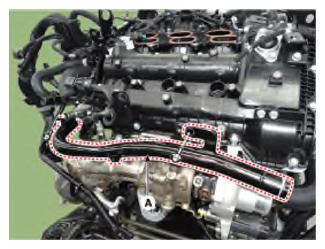

- Remove the water inlet pipe (A).
Tightening torque:
24.5 - 28.4 N.m (2.5 - 2.9 kgf.m, 18.1 - 21.0 lb-ft)
NOTE:- Do not reuse the water pipe o-ring.
- Install in the reverse order of removal.
- Recheck the coolant level.
(Refer to Cooling System - "COOLANT ")
