Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

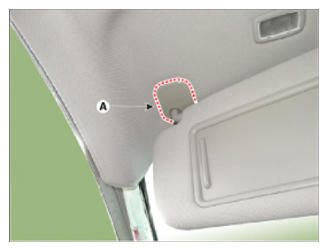

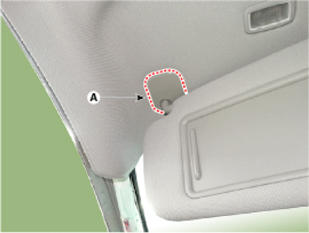

Remove the sunvisor mounting cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

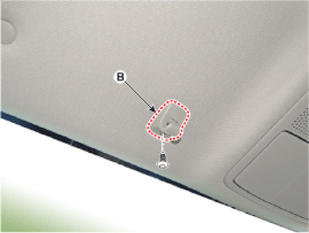

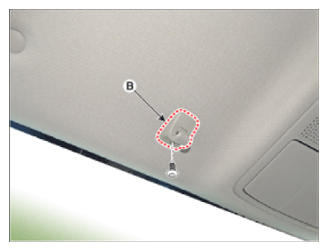

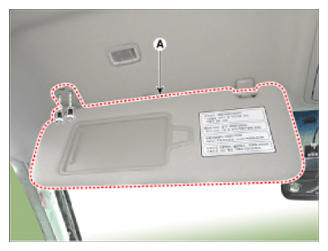

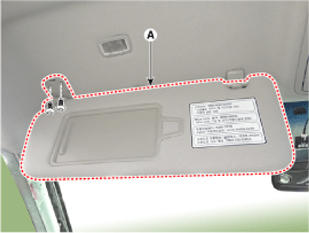

Loosen the mounting screws, and then remove the sunvisor (A) and retainer (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

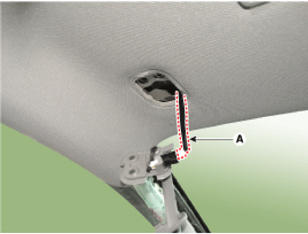

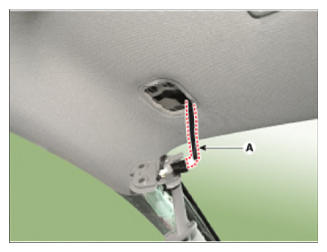

Disconnect the sunvisor lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
