Repair Procedures: Replacement

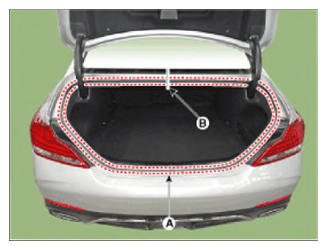

  1. Remove the trunk lid weatherstrip (A).
    NOTE:
    • Do not apply sealant to the body.
    G13541104Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse the removal procedure.

    Information

    • When installing the trunk lid weatherstrip, check the center-marking line (B).
