Vehicle S/W Management

Clear DTC after connecting GDS.

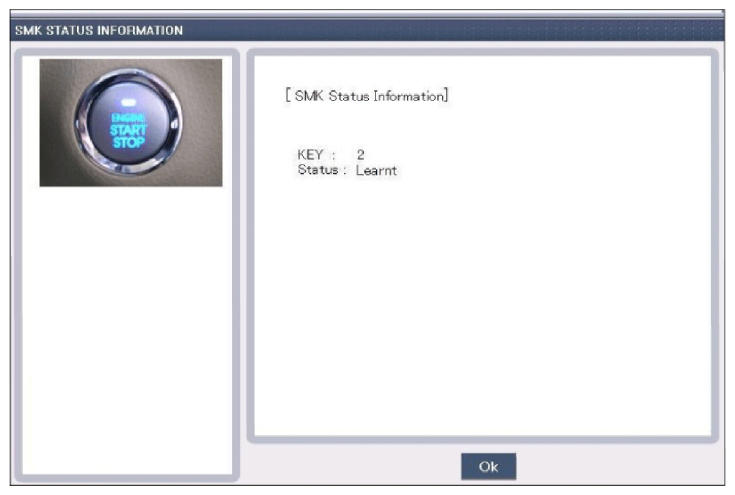

If the same DTC returns, check "Smart key state" in "Vehicle S/W Management".

Courtesy of HYUNDAI MOTOR AMERICA
Is the Smart key unit in the 'Learnt' state?
YES
- Fault can be intermittent, caused by poor contact of connectors between the IBU (SMK+BCM+TPMS) and the ECM. Or, ECM memory was not cleared after repair. Thoroughly check connectors for looseness, poor contact, bending, corrosion, contamination, deterioration, or damage. Repair or replace relevant component(s) as necessary and then go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
