Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the windshield wiper arm (A) and blade after removing a nut.

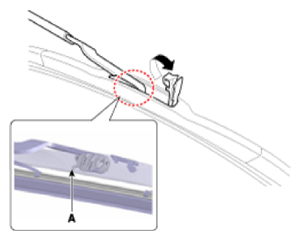

  3. If necessary of removing the wiper blade, push both sides of wiper tabs (A) and then remove the wiper blade.
    G13542062Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the cowl top cover.

    (Refer to Body - "COWL TOP COVER ")

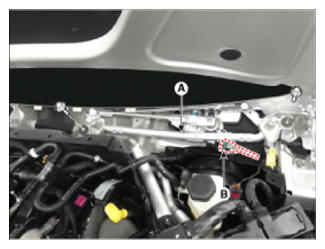

  5. Disconnect the wiper motor connector (B) from the wiper motor & linkage assembly.
  6. Remove the windshield wiper motor and linkage assembly (A) after removing 3 bolts.
    G13542063Courtesy of HYUNDAI MOTOR AMERICA

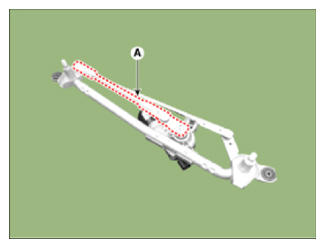

  7. Hold the wiper motor crank arm and remove the upper linkage (A).
    G13542064Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Before removing the wiper motor and linkage assembly, make sure that the motor stops in the auto-stop position.
    Before removing the wiper motor and linkage assembly, check the location and installation angle of the wiper motor crank arm and linkage.

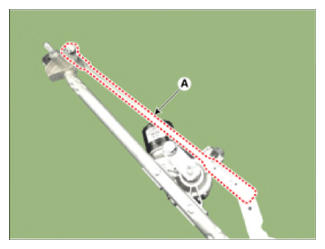

  8. Remove the lower linkage (A) from the wiper motor crank arm.
    G13542065Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Before removing the wiper motor and linkage assembly, check the location and installation angle of the wiper motor crank arm and linkage.

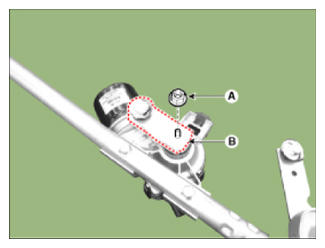

  9. Remove the crank arm (B) after loosening a nut (A).
    G13542066Courtesy of HYUNDAI MOTOR AMERICA

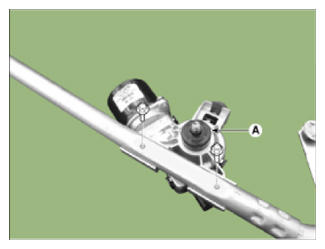

  10. Remove the motor (A) after loosening the bolts.
    G13542067Courtesy of HYUNDAI MOTOR AMERICA
