Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the right side front wheel guard.
  3. Drain the washer fluid from the reservoir tank.

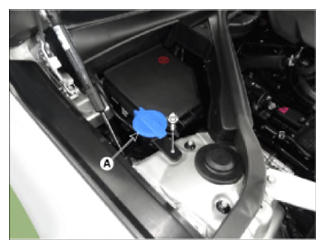

  4. Remove the washer fluid inlet.
    G13542071Courtesy of HYUNDAI MOTOR AMERICA

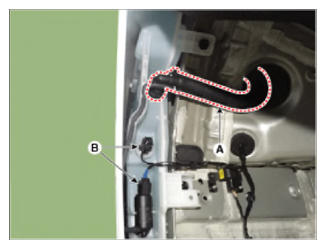

  5. Disconnect the connector (A) and then remove the hose (A).
    G13542072Courtesy of HYUNDAI MOTOR AMERICA

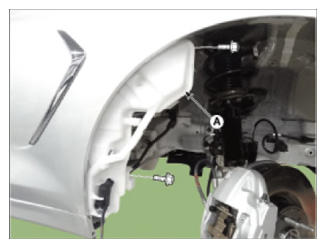

  6. Remove the reservoir tank (A) after loosening the mounting bolts.
    G13542073Courtesy of HYUNDAI MOTOR AMERICA

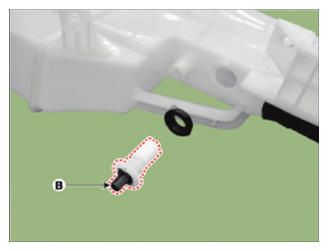

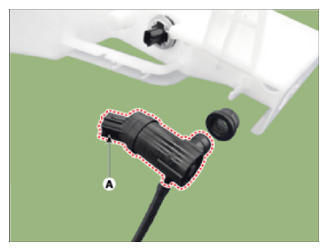

  7. If necessary, remove the washer motor (A) and washer fluid level sensor switch (B).
    G13542074Courtesy of HYUNDAI MOTOR AMERICA
    G13542075Courtesy of HYUNDAI MOTOR AMERICA
