Rear Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

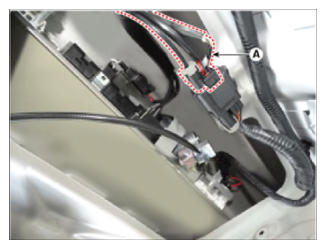

  3. Disconnect the rear camera connector (A).
    G13542325Courtesy of HYUNDAI MOTOR AMERICA

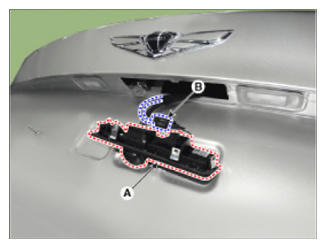

  4. Remove the trunk lid switch assembly (A) and disconnect the connector (B) after disengaging mounting clip.
    G13542326Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the rear camera after loosening the mounting camera.
    G13542327Courtesy of HYUNDAI MOTOR AMERICA
