Left/Right view camera
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

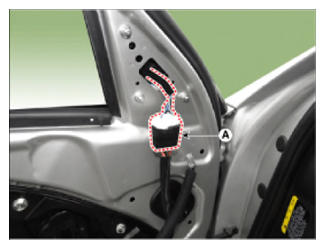

- Disconnect the outside mirror connector (A).

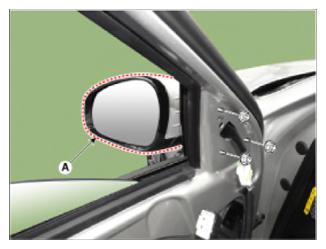

- Loosen the mounting bolts and then remove the mirror assembly (A).

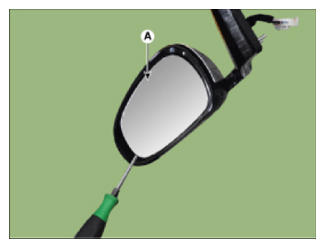

- Remove mirror (A) to the direction as shown in the picture using (-) screw driver.CAUTION:
- Protect mirror from removing tool with cloth (B) wrapped.
- Be careful not to damage mirror and mirror housing during removing process.
- Apply force around the center of mirror because to apply force the end of mirror will break it.

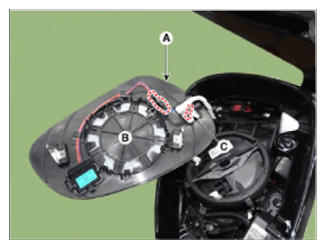

- Disconnect heat wire connectors (C) & BSD warning lamp connector (B) and remove mirror (A).

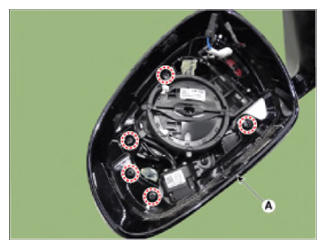

- Separate out Front cover (A) after loosening the screw.

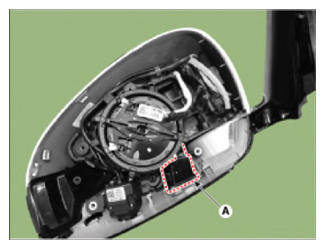

- Loosen the screw and then remove the SVM camera (A).
