Components (1)

Courtesy of KIA MOTORS AMERICA, INC.

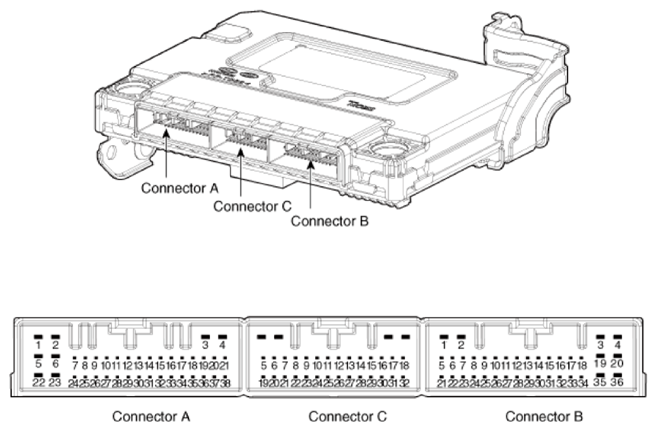

CONNECTOR PIN DESCRIPTION

No	Connector A	Connector B	Connector C
1	-	B CAN (Low)	Front wiper low bus input
2	Power mirror input	B CAN (High)	power GND
3	P-CAN (Low)	FPAS power_output	B+(power)
4	P-CAN (High)	RPAS power_output	B+(ECU)
5	-	ECU GND	Driver's door outside handle switch (input)
6	Right mirror unfonding_output	PAS/RPAS switch_input	"P" input (AT)/IGN lock switch input (MT)
7	Right mirror HR_output	PAS option_input	Interior 1 Antenna (-)_output
8	Immobilizer antenna (+) output	-	Bumper antenna (-) output
9	Immobilizer antenna (-)_output	-	Interior 1 Antenna 2 (-) output
10	Brake switch signal input	-	Passenger's door outside handle antenna (-) input
11	ESCL Enable_output	Front wiper high relay_output	Trunk antenna 3 (-) output
12	Brake switch signal input	-	Driver's door outside handle antenna (-) output
13	Fog switch input	-	-
14	Light switch_input	-	ESCL_COM
15	Front wiper volume switch input	LF sharing output	Auto light sensor power output
16	PAS/RPAS indicator output	-	ACC_input
17	Start Stop Button (SSB) Ring illumination (+) output	SSBswitch1_input	IGN1 relay_output
18	PAS (LIN1)	PAS/RPAS power input	ACC relay output
19	SAFETY (LIN1)	Security indicator output	ESCL (-) output
20	RPM_input	Sunroof status_input	ESCL (+) output
21	Wheel speed sensor signal_input	Rain sensor option_input	Passenger's door outside handle switch_input
22	-	Wiper parking switch input	-
23	Right mirror folding output	Wiper power relay output	Interior 1 Antenna (+) output
24	Right mirror VT input	Wiper Low relay output	Bumper antenna (+) output
25	-	-	Interior 1 Antenna (+)_output
26	Puddle poket lamp_output	-	Passenger's door outside handle antenna (+) output
27	Engine start feedback_input	-	Trunk antenna 3 (+) output
28	-	-	Driver's door outside handle antenna (+) output
29	Starter relay output	-	EMS COM
30	Head lamp switch (High) input	-	Auto light sensor ground output
31	Front wiper switch input	SSBswitch2 input	Auto light sensor signal input
32	-	ESCL Unlock switch input	IGN1 input
33	Multifunction switch ground input	IGN2 input
34	External buzzer output	IGN2 relay_input
35	Start Stop Button (SSB) illumination (+) _output	Front washer switch_input
36	Rain sensor (LIN2)	B+ (ESCL)
37	-
38	-
