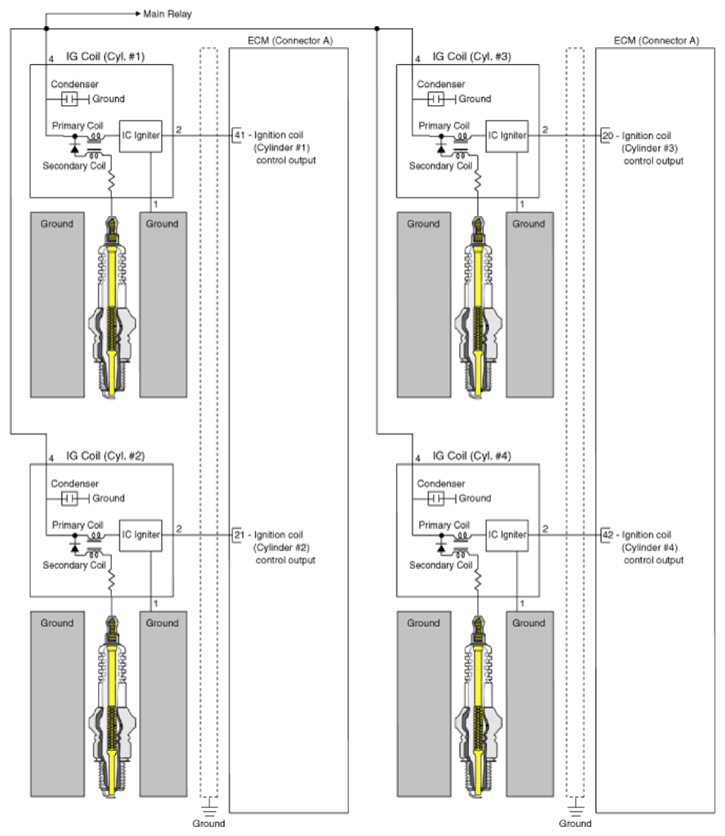

Home >> Genesis >> 2019 >> G70 2.0T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 2.0L >> Ignition Coil >> Schematic Diagrams >> Circuit Diagram >> Notes
