Description and Operation: Operation

Non - M/T

How to use:

1. Engine Auto-Stop: D-range + brake pedal is pressed.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Engine Auto-Start
   1. Brake pedal is released.
   2. Brake pedal is pressed + Manual range (Sports mode)
   3. Brake pedal is pressed + R range

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

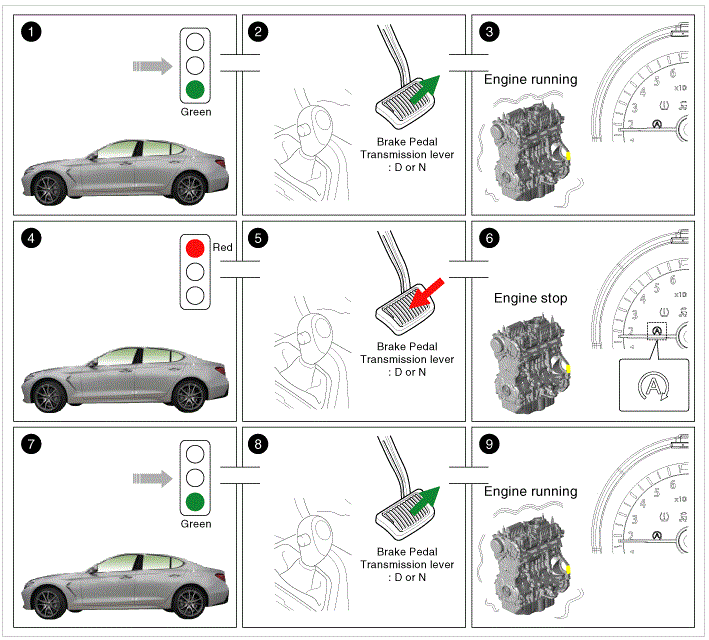

   1. Vehicle moving.
   2. The transmission lever is in D. The brake pedal is released.
   3. The engine is running. (Vehicle is moving.)
   4. The driver brakes until the vehicle comes to a standstill.
   5. The transmission lever is in D. The brake pedal is pressed.
   6. The engine stops. The symbol "AUTO STOP" lights up in the instrument cluster.
   7. The driver wants to continue the journey.
   8. The transmission lever is in D. The brake pedal is released.
   9. The engine is running again. The symbol "AUTO STOP" goes out.
