Repair Procedures: Removal

  1. Turn the ignition switch OFF.

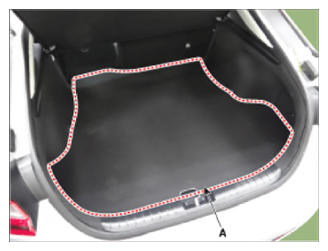

  2. Remove the luggage covering (A).
    G13539499Courtesy of HYUNDAI MOTOR AMERICA

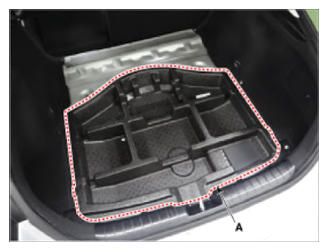

  3. Remove the luggage center tray (A).
    G13539500Courtesy of HYUNDAI MOTOR AMERICA

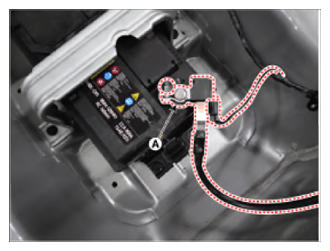

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G13539501Courtesy of HYUNDAI MOTOR AMERICA

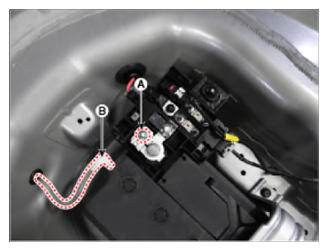

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G13539502Courtesy of HYUNDAI MOTOR AMERICA

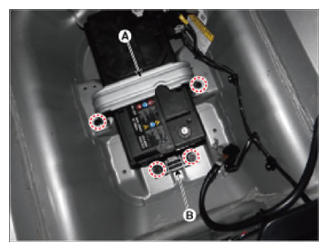

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G13539503Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the battery.
