Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.

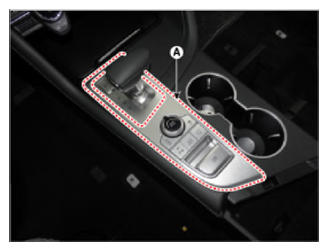

  2. Using the screw or remover, remove the console upper cover (A).
    G13541062Courtesy of HYUNDAI MOTOR AMERICA

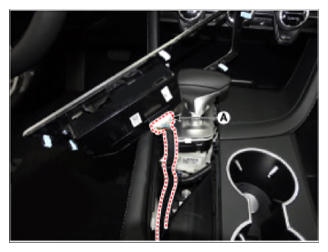

  3. Disconnect the connector (A).
    G13541063Courtesy of HYUNDAI MOTOR AMERICA

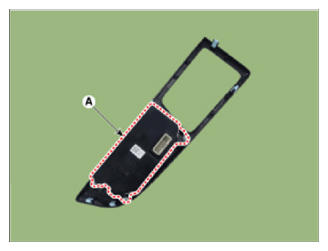

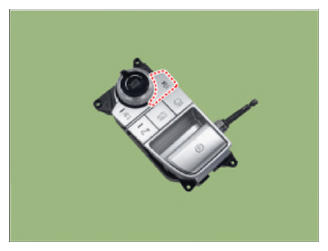

  4. Disconnect the screw and then ESP OFF switch (A).
G13541064Courtesy of HYUNDAI MOTOR AMERICA
G13541065Courtesy of HYUNDAI MOTOR AMERICA
