Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ")

  3. Remove the front seat under cover.

    (Refer to Body - "FRONT SEAT ")

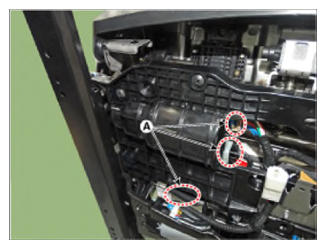

  4. Disconnect the power seat module connector (A).
    G13541816Courtesy of HYUNDAI MOTOR AMERICA

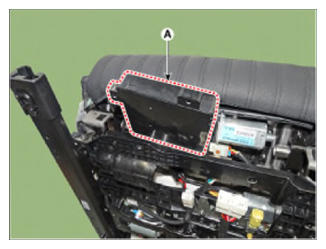

  5. Remove the power seat module (A) after loosening the screws.
G13541817Courtesy of HYUNDAI MOTOR AMERICA
