Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.

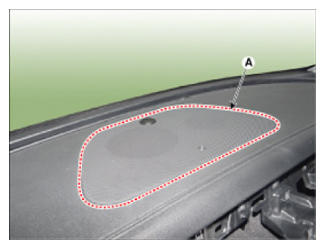

  2. Using a scraper or remover, remove the crash pad center speaker grille (A).
    G13542162Courtesy of HYUNDAI MOTOR AMERICA

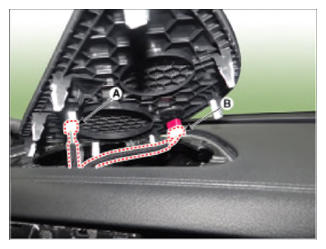

  3. Disconnect the security connector (A) and auto light & Photo sensor connector (B).
    G13542163Courtesy of HYUNDAI MOTOR AMERICA

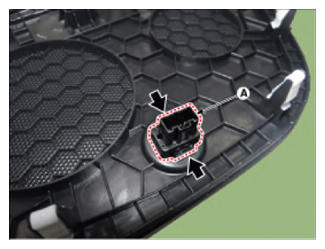

  4. Remove the auto light sensor (A) after releasing the fixed hooks.
    G13542164Courtesy of HYUNDAI MOTOR AMERICA
