Repair Procedures: Installation
- Install in the reverse order of removal.
- Tighten the HECU mounting bolts and nuts to the specified torque.
- After installation, bleed the brake system.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
- Connect the GDS to the data link connector located underneath the dash panel.
- Make a selection and operate the process according to the instructions on the GDS screen.

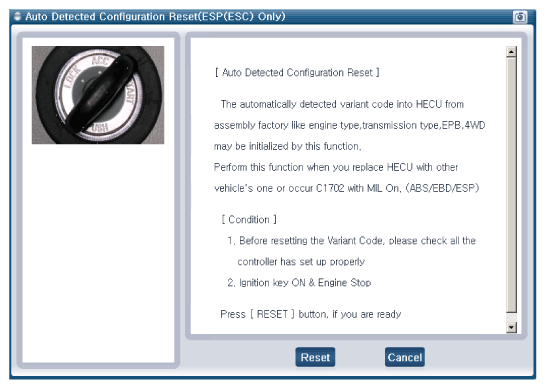

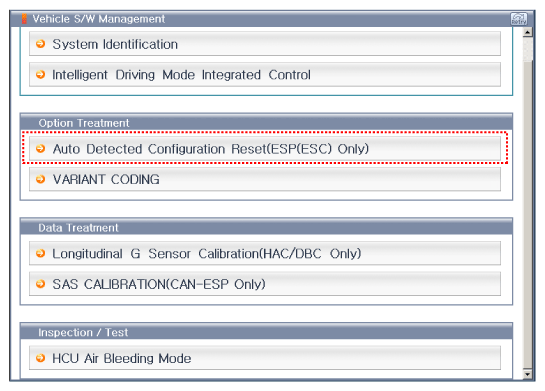

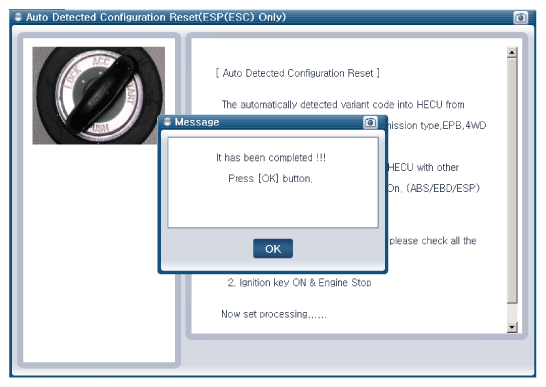

[Auto Detected Configuration Reset]

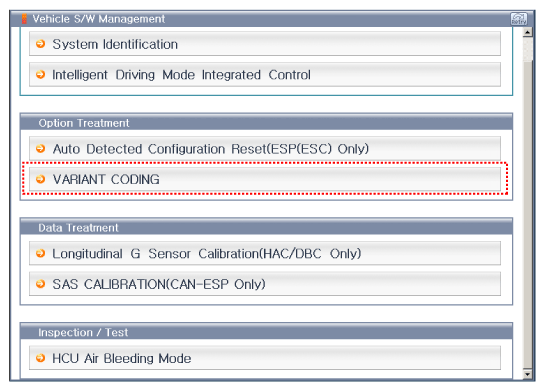

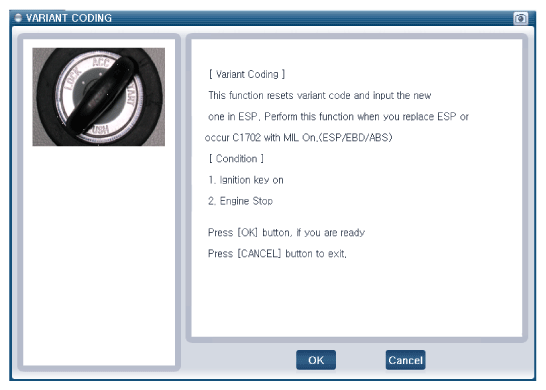

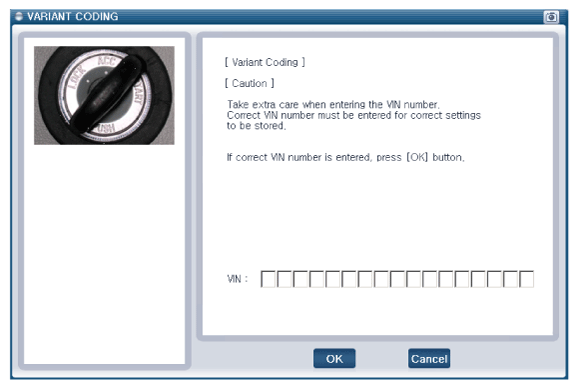

[Variant Coding]

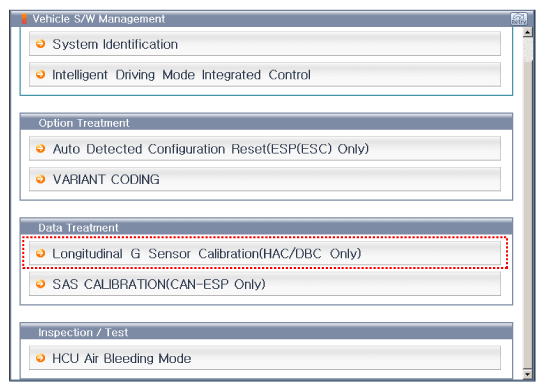

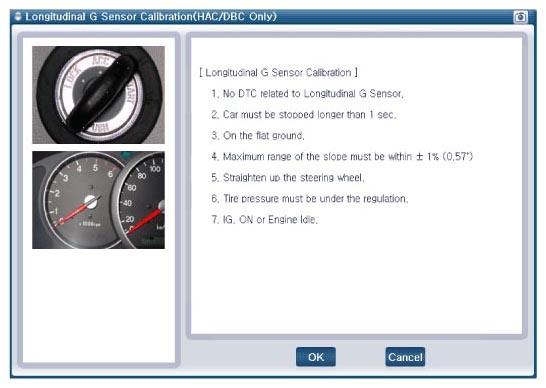

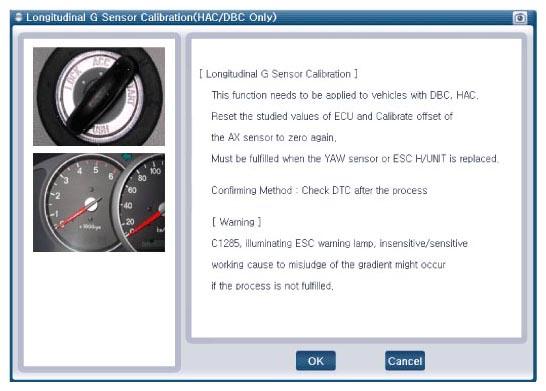

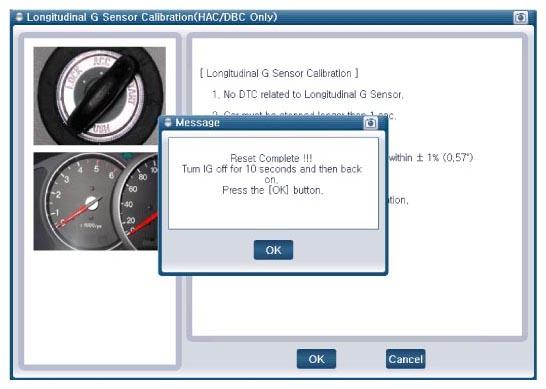

[Longitudinal G Sensor Calibration]

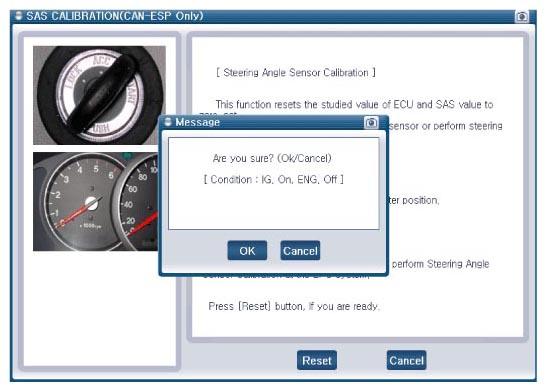

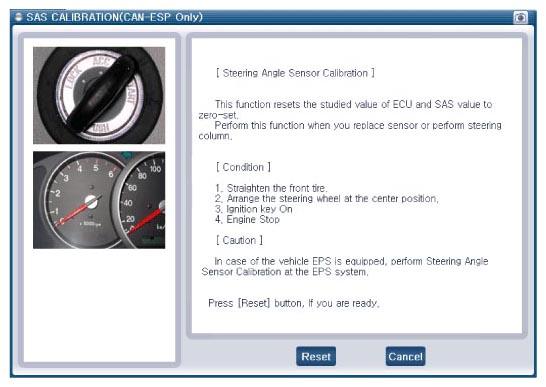

[SAS Calibration]
