[Water Temperature Control Assembly]
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal from the trunk room.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Loosen the drain plug and drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the water inlet pipe.
(Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY ")
- Remove the surge tank.
(Refer to Intake and Exhaust System - "SURGE TANK ")
- Remove the water outlet pipe.
(Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

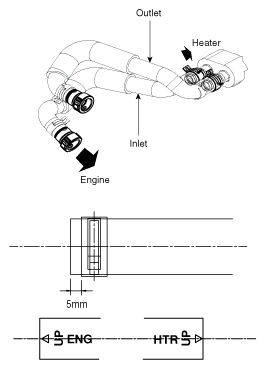

- Disconnect the heater inlet/outlet hose (A).
- Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")
- Disconnect the wiring connectors and harness clamps and remove the connector brackets around the water temperature control assembly.
- Disconnect the heater hose (A).
- Remove the heater pipe (A).
Tightening Torque
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 Ib-ft)
- Remove the water temperature control assembly (A) and the gasket.
Tightening Torque:
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 Ib-ft)
NOTE:- When installing, replace with new gaskets.
- Install in the reverse order of removal.
- Fill the radiator with coolant and check for leaks.
(Refer to Cooling System - "COOLANT ")
- Start engine and check for leaks.
- Recheck the coolant level.
