Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

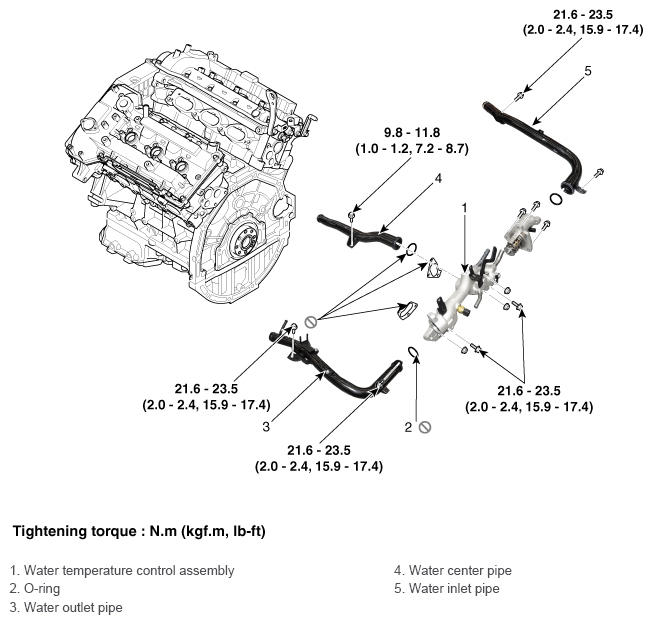

Fig 1: Water Temperature Control Assembly Components With Torque Specification
G12656338Courtesy of HYUNDAI MOTOR AMERICA
