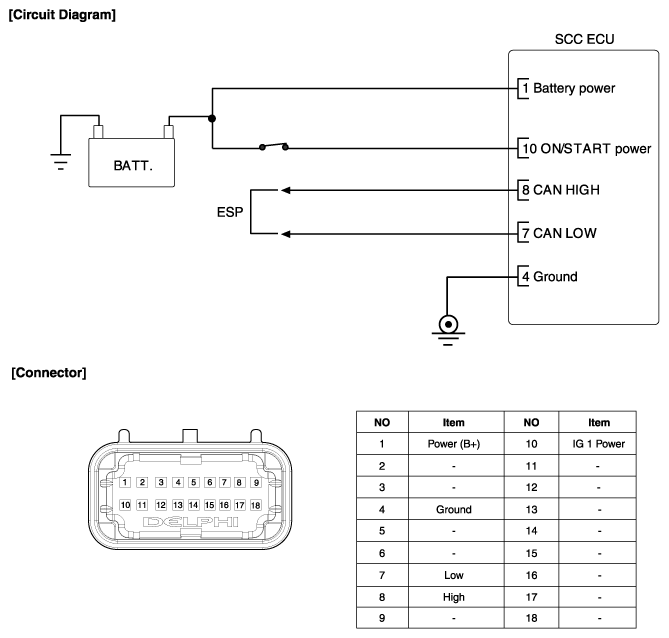

Home >> Genesis >> 2018 >> G80 3.8, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Smart Cruise Control System >> Smart Cruise Control Unit >> Schematic Diagrams >> Circuit Diagram
