Monitor DTC Status

  1. Connect GDS and select "Diagnostic Trouble Codes (DTC)"  mode.
  2. Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
  3. Read "DTC Status" parameter in DTC menu of the GDS.

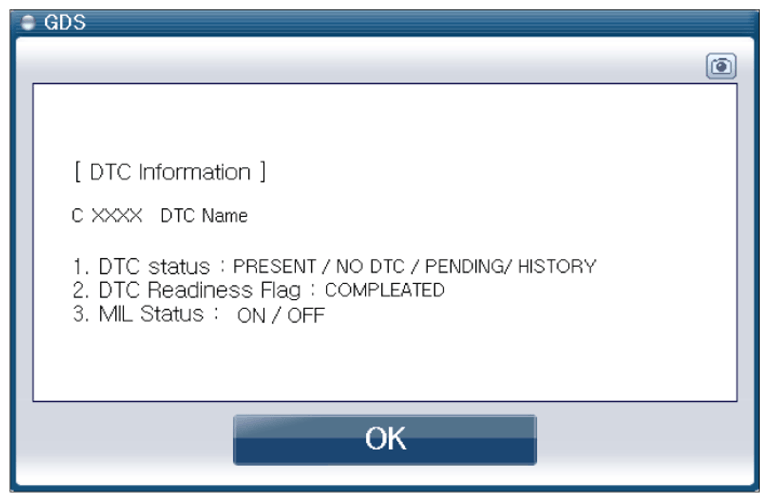

    G12654397Courtesy of HYUNDAI MOTOR AMERICA
  4. Is parameter displayed "History (Not Present) Fault"?
