Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rheostat switch connector (A).

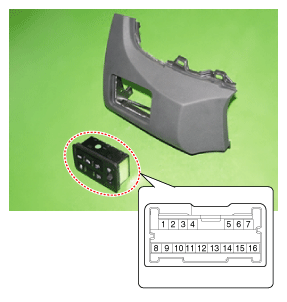

Fig 1: Locating Rheostat Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

Fig 2: Rheostat Switch Connector Terminals Chart

Courtesy of KIA MOTORS AMERICA, INC.
