Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
NOTE: The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.
  1. Remove the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

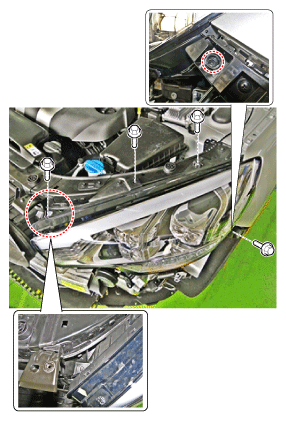

  3. Remove the head lamp assembly (A) after loosening the mounting bolts.
    Fig 1: Loosening Head Lamp Assembly Mounting Bolts
    G11801857Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: When the head lamp is removed, be careful not to get the head lamp lens or fender scratched.
  4. Remove the head lamp assembly (A) after disconnecting the connector.
    Fig 2: Locating Head Lamp Assembly Connector
    G11801858Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Take care that retaining clip (A) is not to be damaged.
    Fig 3: Locating Retaining Clip
    G11801859Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the bulb caps from the head lamp assembly after turning in the counter clockwise direction.
    1. Head Lamp (High) Cap
    2. Head Lamp (Low) Cap

    [HID]

    Fig 4: Removing Bulb Caps
    G11801860Courtesy of KIA MOTORS AMERICA, INC.

    [LED]

    * The high/low beam of the LED head lamp assembly can not be changed. (LED cooling fan can be changed.)

    Fig 5: Locating High/Low Beam
    G11801861Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Turn the head lamp switch off to avoid high voltage
    Be careful not to damage the bulb and use genuine bulbs only
    • Do not apply excessive force and fit it correctly.
    • Confirm the bulb locking
  6. Remove the ignitor connector (A).
    Fig 6: Locating Ignitor Connector
    G11801862Courtesy of KIA MOTORS AMERICA, INC.
  7. The low beam ignitor (A) after loosening the mounting screw.
    Fig 7: Locating Low Beam Ignitor
    G11801863Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the Clip (A) from the head lamp (High) bulb.
    Fig 8: Locating Head Lamp (High) Bulb Clip
    G11801864Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the high beam (A).
Fig 9: Locating High Beam
G11801865Courtesy of KIA MOTORS AMERICA, INC.
