Connector Pin Information
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

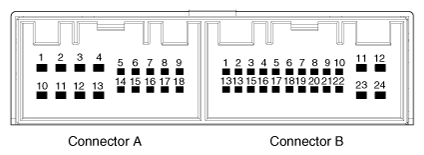

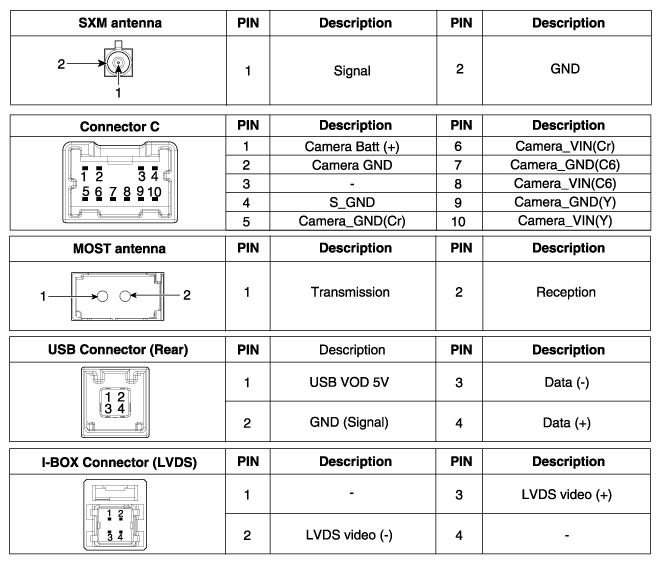

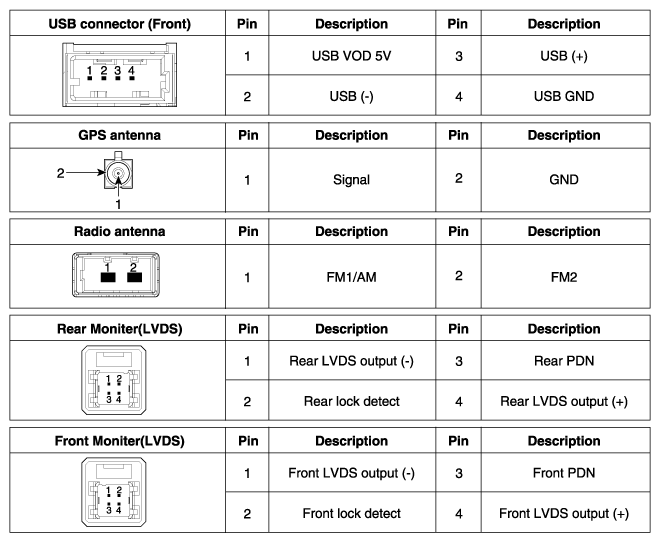

| No | Connector A | Connector B |
|---|---|---|
| 1 | - | MM CAN HIGH |
| 2 | Rear seat LCD monitor ON/OFF | - |
| 3 | - | High-speed CAN (+) |
| 4 | - | - |
| 5 | - | AUX video shield GND |
| 6 | - | IGN 1 B (+) |
| 7 | i-BOX microphone (+) | AUX Video |
| 8 | Illumination (+) | AUX R |
| 9 | Reverse | - |
| 10 | i-BOX microphone shield GND | MIC (+) |
| 11 | - | ACC |
| 12 | - | B (+) |
| 13 | - | MM CAN low |
| 14 | Front seat LCD monitor ON/OFF | - |
| 15 | - | High-speed CAN (-) |
| 16 | i-BOX microphone (-) | Vehicle speed |
| 17 | Illumination (-) | Mic shield GND |
| 18 | Antenna B (+) | AUX audio shield GND |
| 19 | AUX video GND | |
| 20 | AUX DETECT | |
| 21 | AUX L | |
| 22 | MIC (-) | |
| 23 | M GND | |
| 24 | M GND |
