Description and Operation: Description

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. Power Seat Module (PSM)
    Fig 1: Power Seat Module
    G11801581Courtesy of KIA MOTORS AMERICA, INC.
    1. Main features
      Item Description
      Installation location Lower section of the driver side seat
      Component configuration
      1. Embedded with CAN Communication IC
      2. Seat memory save and recall check buzzer embedded
      Main features
      1. Manual function (by person control through switch operation)
      2. Memory switch can store and recall seat positions for 2 drivers
      3. Out synchronization (can be activated/deactivated via USM function or scanner)
      4. Internal buzzer control by save & recall
      5. Headrest SW, slide, and recline limit switch applied
      6. B+ recall
      7. Added limit setting mode using the scanner

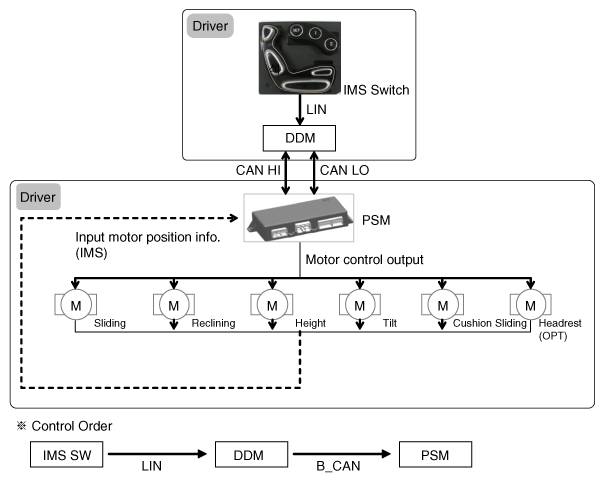

    2. Power seat signal flow
      Fig 2: Power Seat Signal Flow Diagram
      G11801582Courtesy of KIA MOTORS AMERICA, INC.
    3. For detail information about circuit diagram, refer to the POWER WINDOW SWITCH .

      (Refer to IMS (Integrated Memory System) - "MEMORY POWER SEAT UNIT ")
