Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the lower crash pad switch assembly (A) after disengaging the mounting clip.
    G11342664Courtesy of
    G11342665Courtesy of
  4. Remove the rheostat switch connector (A).
    G11342666Courtesy of

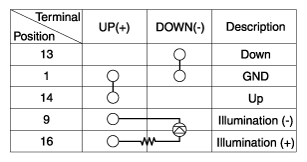

  5. Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.
G11342667Courtesy of
