Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

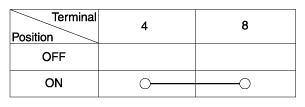

  1. Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.
G11342658Courtesy of
No Description
1 BAT (+)
2 Illumination (+)
3 -
4 Signal
5 Pilot lamp
6 -
7 Illumination (-)
8 GND
G11342659Courtesy of
G11342660Courtesy of
