Chart 4

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

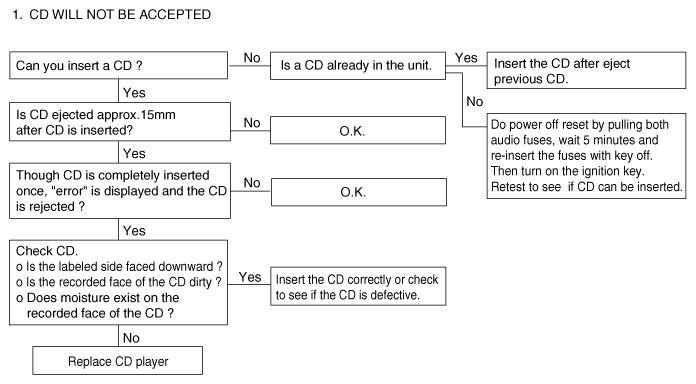

Fig 1: Troubleshooting Problem Area Chart 4 (CD; 1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

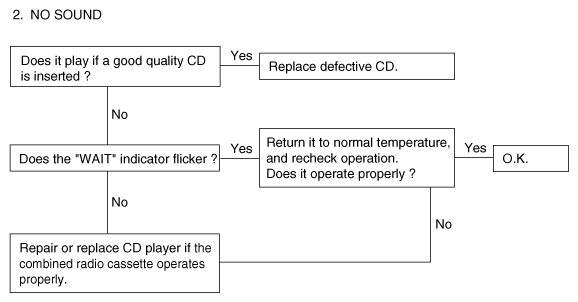

Fig 2: Troubleshooting Problem Area Chart 4 (CD; 2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

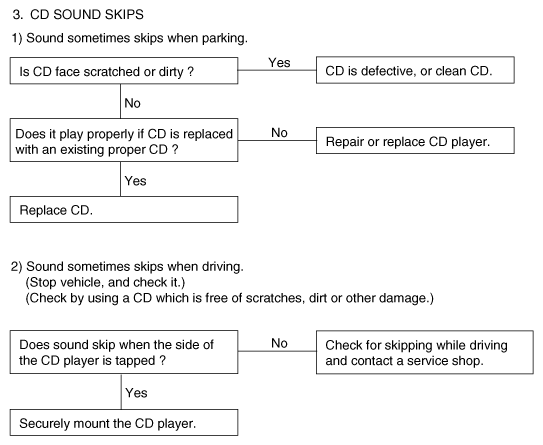

Fig 3: Troubleshooting Problem Area Chart 4 (CD; 3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

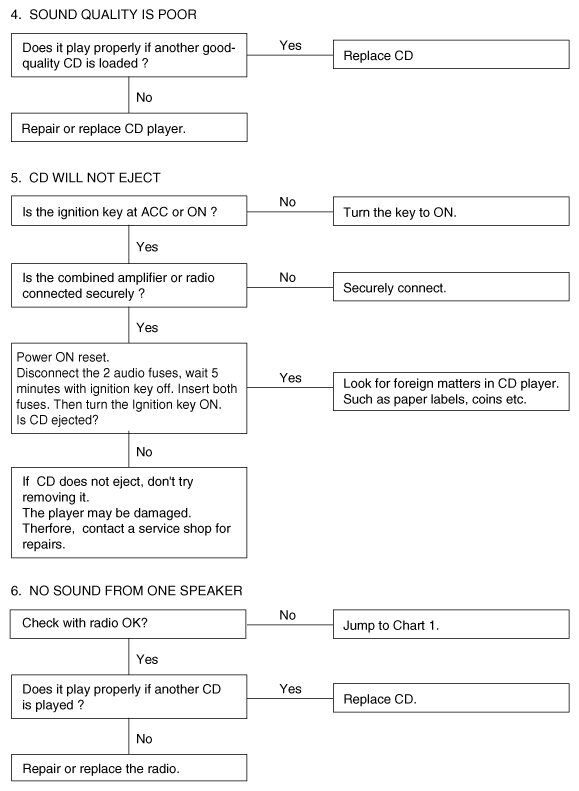

Fig 4: Troubleshooting Problem Area Chart 4 (CD; 4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
