Diagnosis With GDS

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

The Body Electrical Systems can quickly be diagnosed for failed parts using the available vehicle diagnostic systems (GDS).
The diagnostic systems (GDS) provide the following information.
1. Self Diagnosis: Checking the failure code (DTC) and display
2. Current Data: Checking the system input/output data state
3. Actuation Test: Checking the system operation condition
4. Additional Function: Other controlling such as he system option and zero point adjustment
Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.
Select the "Multi Function Switch (MFSW)" to check the Multi Function Switch (MFSW).
Select the "Current data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the Multi Function Switch (MFSW) can be checked.

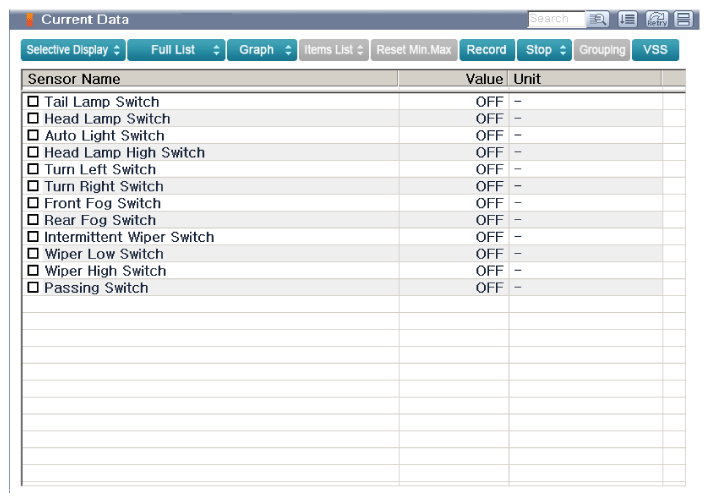

Fig 1: Screen Display - Select Multi Function Switch (MFSW) To Check
Courtesy of KIA MOTORS AMERICA, INC.
