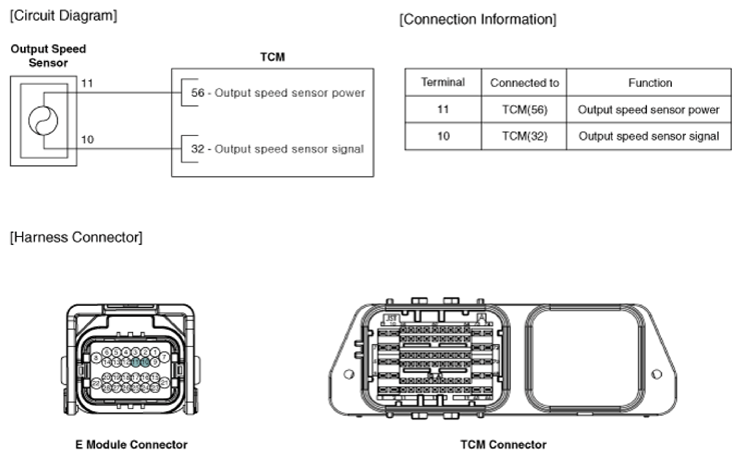

Home >> Genesis >> 2017 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Control System >> Output Speed Sensor >> Schematic Diagrams >> Circuit Diagram
