Description and Operation: Description

Line pressure control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the line pressure.

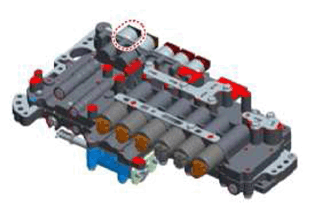

Fig 1: Line Pressure Control Solenoid Valve
G11404774Courtesy of HYUNDAI MOTOR AMERICA
