Repair Procedures: Replacement

1. Remove the center pillar lower trim.

   (Refer to Interior Trim - "CENTER PILLAR TRIM ")

2. Remove the center pillar upper trim.

   (Refer to Interior Trim - "CENTER PILLAR TRIM ")

3. After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).

   Tightening Torque:

   39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.8 - 39.8 lb-ft)

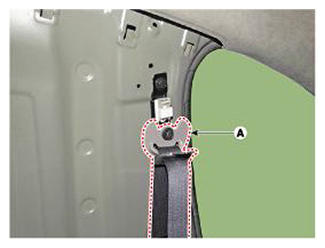

   Fig 1: Locating Front Belt Upper Anchor

   Courtesy of HYUNDAI MOTOR AMERICA
4. After loosening the mounting bolts, remove the height adjustor (A).

   Tightening Torque:

   39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8 lb-ft)

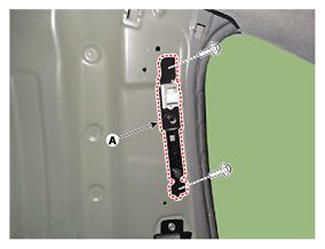

   Fig 2: Removing Height Adjuster With Mounting Bolts

   Courtesy of HYUNDAI MOTOR AMERICA
5. To install, reverse the removal procedure.

Information

• Replace any damaged clips.
