G90 Around View Module (AVM) Calibration (17-BE-001-G)

G90 AROUND VIEW MODULE (AVM) CALIBRATION

TECHNICAL SERVICE BULLETIN

SERVICE INFORMATION

DESCRIPTION

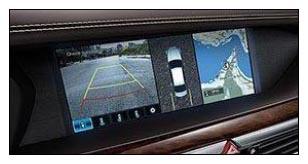

This bulletin describes the procedure to calibrate the Around View Module (AVM) on the G90 vehicle.

Applicable Vehicles:  All G90 Vehicles

PARTS INFORMATION

Parts Name	Part Number	Image	Remark
AVM Kit with Type A Adaptor	G0GHDN0001		Kit Containing: Reference Lines Reference Scale Reference Targets
GDS-Mobile Complete Kit GDS-Mobile Lit Kit (includes VCI II Module)	GDSM-CPKITH GDSM-LTKITH		Tablet with GDS software Scan tool needed to interface with vehicle

WARRANTY INFORMATION

Normal warranty applies where applicable.

SERVICE PROCEDURE

1. AVM Calibration Preparation:

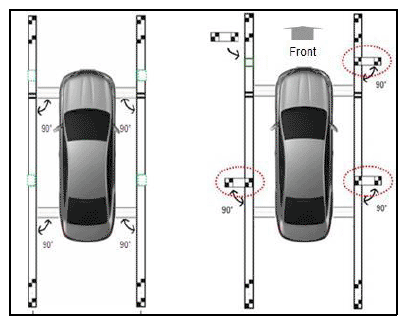

   In an open area with a leveled floor, lay out the:

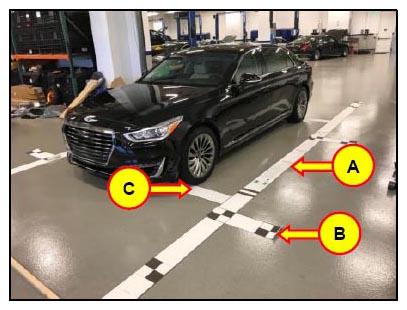

   1. Reference Lines (A)
   2. Reference Targets (B)
   3. Reference Scale (C)

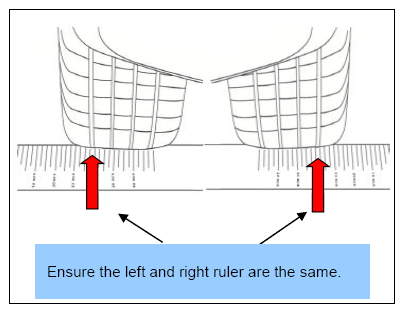

2. Set the central point of the vehicle by adjusting the Reference Scale to the left or right, so that the ruler values under both tires are identical.

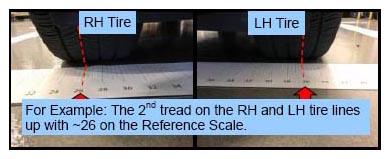

   In the example shown on the right, the 2nd tread on both the RH and LH tire lines up with ~26.

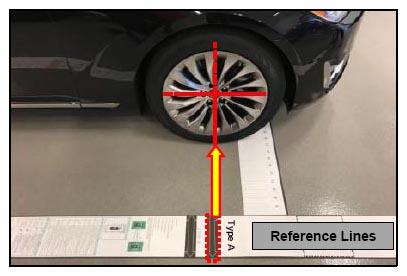

3. Set up the Reference Lines by lining up the "Type A" line directly with the center of the front wheel (repeat for both the left and right side of the vehicle).

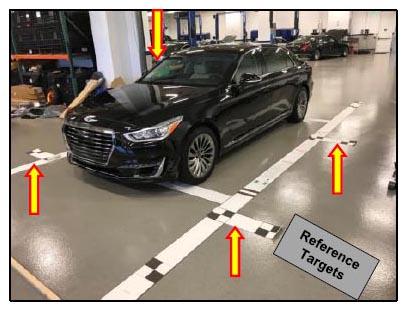

4. Lay the (4) Reference Targets on the marked locations.
5. AVM Calibration Procedure:

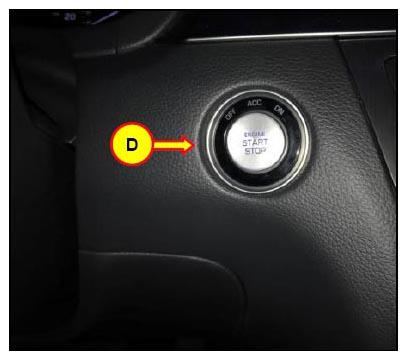

   Depress the brake pedal and press the START STOP BUTTON  (D) to start the vehicle.

   NOTE: Park vehicle in a well ventilated area during the update process.

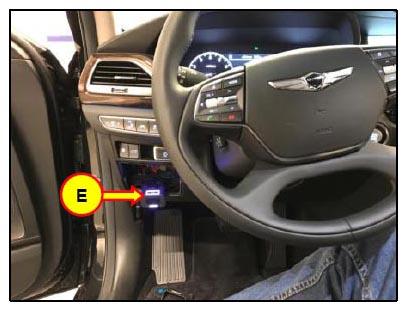

6. Plug the VCI II Module into the vehicle's DLC port (E) located to the lower left kick panel area.

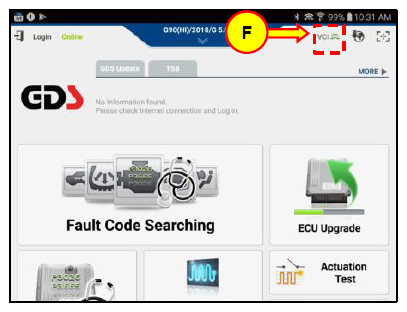

7. Open the GDS software and tap the VCI button (F) at the top right corner to initiate a connection between the tablet and module.

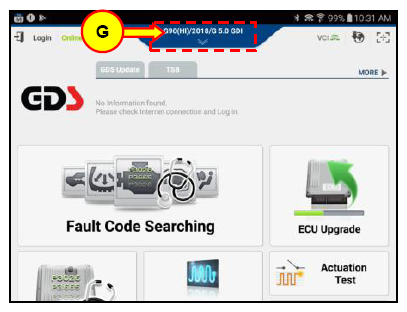

8. Once a connection has been established, tap the top of the screen (G) to enter the vehicle selection page.

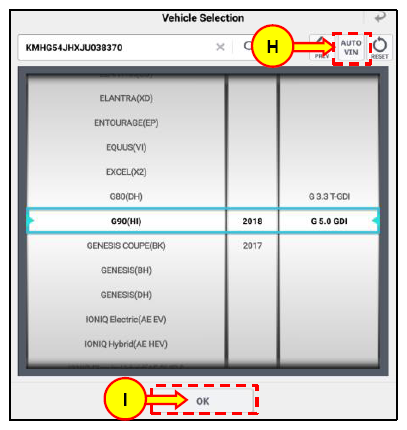

9. Tap the AUTO VIN button (H). The vehicle VIN, model, model year, and engine size will automatically populate. Tap the OK button (I) to confirm the populated information.

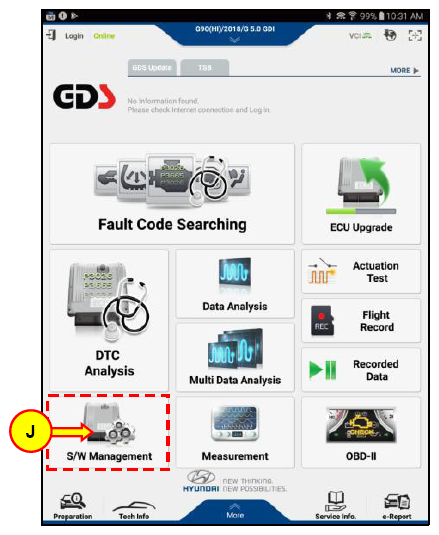

10. Upon Vehicle Selection confirmation, the screen will load to the GDS Home page. Select the S/W Management button (J).

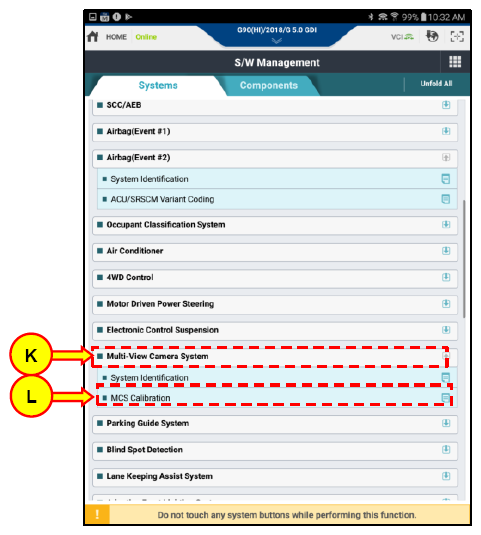

11. In the S/W management page, select Multi-View Camera System (K). Then select MCS Calibration (L).
12. Confirm the following pre-conditions:
    • Engine ON (Step  5)
    • Gear position N, Parking brake ON/Engaged
    • Bonnet Close/Trunk Closed/Door Closed/Side View Mirror Open

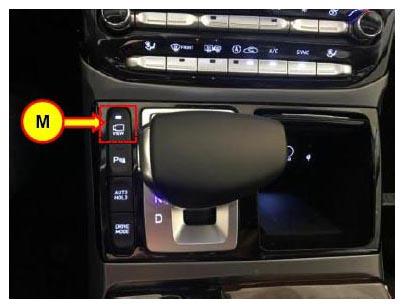

    • MCS Button ON (M)

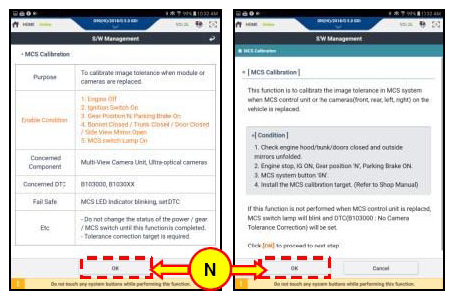

    Then tap OK (N) to proceed.

    NOTE: The engine must be ON. Otherwise, you cannot shift the gear to N.
13. Proceed with the calibration procedure:

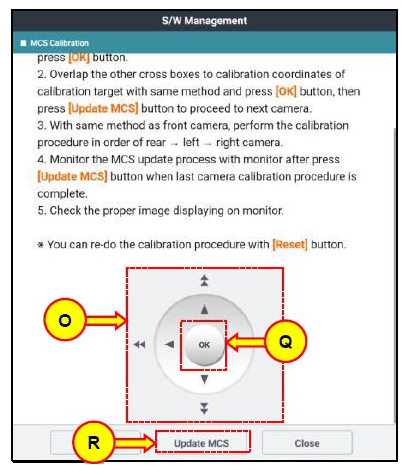

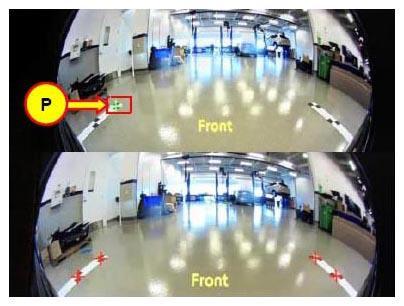

    • Use the controls on the GDS software (O) to align the blinking cross box (P) onto the center of the reference targets, tapping "OK" (Q) to switch between cross box.
    • When all targets have been aligned tap "Update MCS" (R).

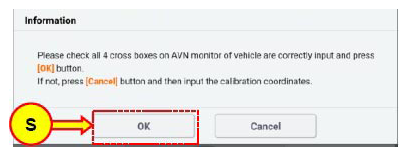

    • Upon tapping "Update MCS" you will be prompted to check that all 4 cross boxes have been set correctly. Tap "OK" (S) to proceed to the next camera. Repeat this step for all cameras.
    NOTE: The navigation system will automatically reboot after all the cameras have been calibrated.
14. Upon completion verify that the cameras have been properly calibrated.

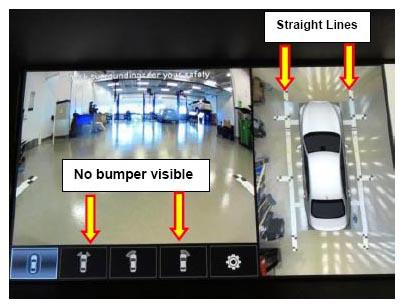

    • The left and right reference lines should appear as straight lines.
    • The front and rear bumper should not be visible on the screen.
    NOTE: If either of these conditions is not met, repeat step  13.
