Components and Components Location: Components
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

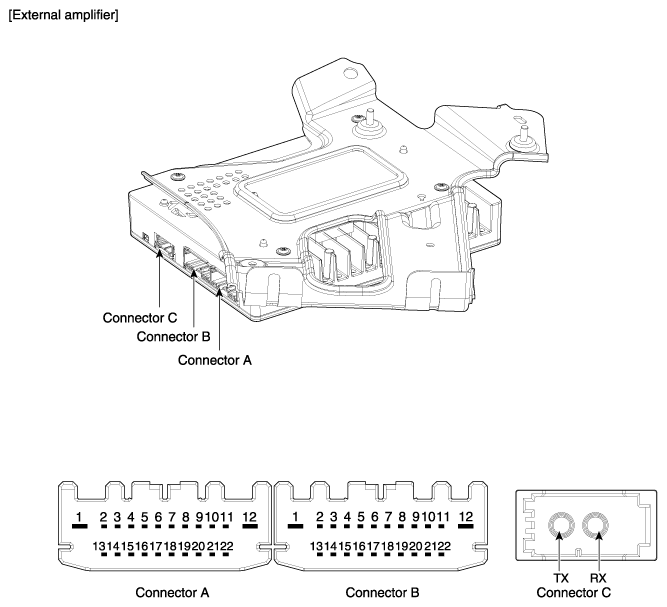

| No | Connector A | No | Connector B | No | Connector C |
|---|---|---|---|---|---|
| 1 | - | 1 | GND | 1 | transmission (Tx) |
| 2 | Front center (-) | 2 | Front Left midrange/tweeter (+) | 2 | reception (Rx) |
| 3 | Front center (+) | 3 | Front Left midrange/tweeter (-) | 3 | |
| 4 | Subwoofer (-) | 4 | Left Surround (+) | 4 | |
| 5 | Subwoofer (+) | 5 | Left Surround (-) | 5 | |
| 6 | - | 6 | - | 6 | |
| 7 | - | 7 | - | 7 | |
| 8 | Front bass (LH) (+) | 8 | - | 8 | |
| 9 | Front bass (LH) (-) | 9 | - | 9 | |
| 10 | Front bass (RH) (-) | 10 | - | 10 | |
| 11 | Front bass (RH) (+) | 11 | - | 11 | |
| 12 | - | 12 | B (+) | 12 | |
| 13 | left midrange/tweeter (-) | 13 | bass (LH) (-) | 13 | |
| 14 | left midrange/tweeter (+) | 14 | bass (LH) (+) | 14 | |
| 15 | right midrange/tweeter (-) | 15 | Reserved (-) | 15 | |
| 16 | Right midrange/tweeter (+) | 16 | Reserved (+) | 16 | |
| 17 | bass (RH) (-) | 17 | - | 17 | |
| 18 | bass (RH) (+) | 18 | CAN (-) | 18 | |
| 19 | Front midrange/tweeter (+) | 19 | CAN (+) | 19 | |
| 20 | Front midrange/tweeter (-) | 20 | - | 20 | |
| 21 | Surround (RH) (-) | 21 | IGN1 | 21 | |
