FOB Status Check

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

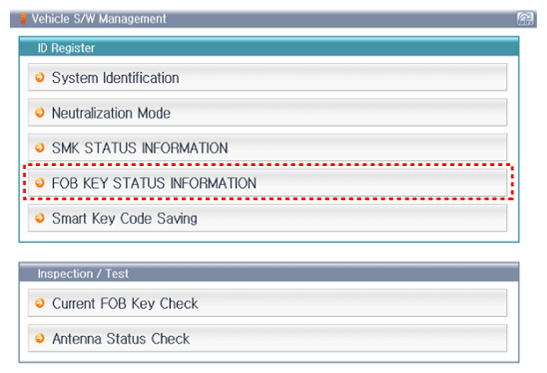

    Fig 1: Display - Fob Key Status Info Screen
    G11863198Courtesy of KIA MOTORS AMERICA, INC.

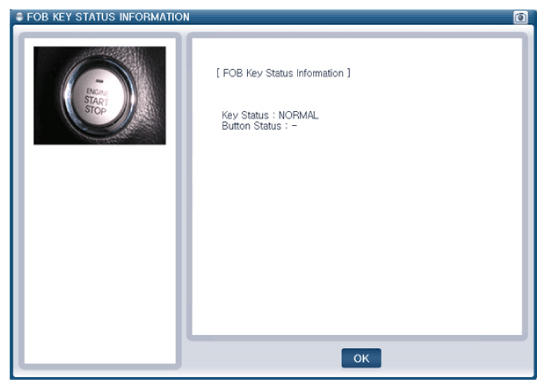

    Fig 2: Display - Fob Key Status Information Screen
    G11863199Courtesy of KIA MOTORS AMERICA, INC.
