Circuit Diagram

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

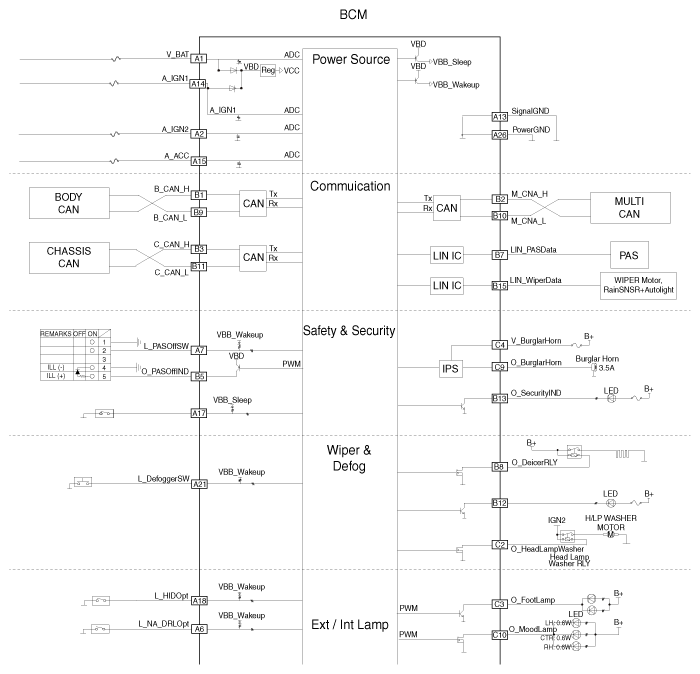

Fig 1: Body Control Module Circuit Diagram (1 Of 2)
G11801519Courtesy of KIA MOTORS AMERICA, INC.

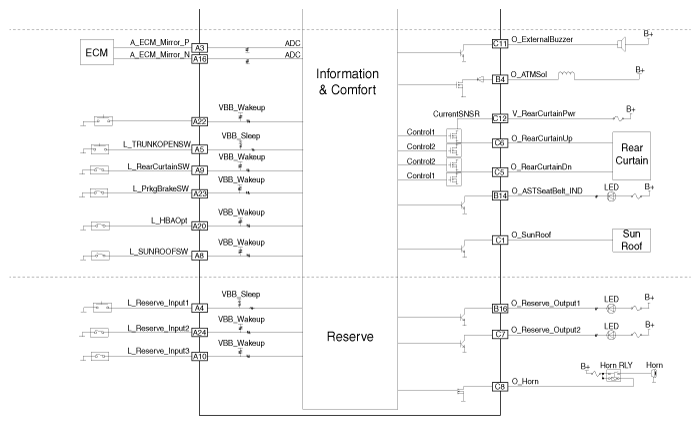

Fig 2: Body Control Module Circuit Diagram (2 Of 2)
G11801520Courtesy of KIA MOTORS AMERICA, INC.
